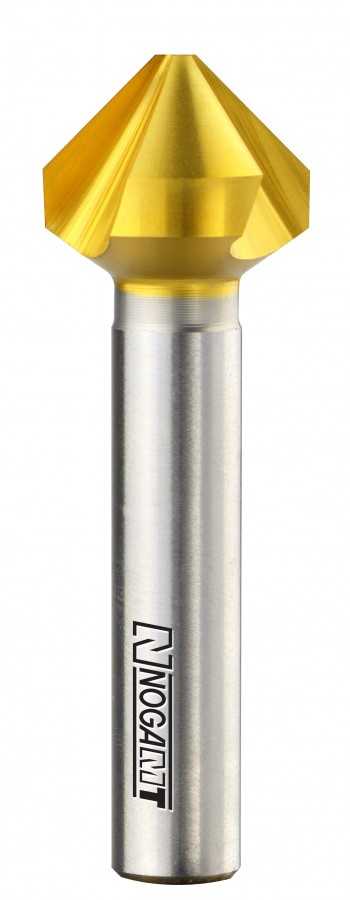

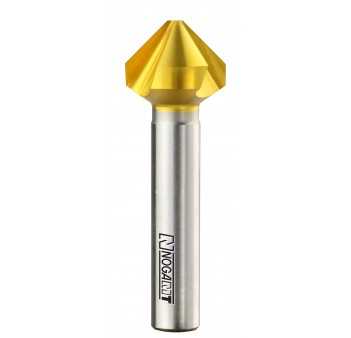

Machine Countersink - HSS-TiN
Properties:
HSS - Achieves the best performance in mild steel
and nonferrous materials considerably less feed force
required. Extremely quiet running, optimal and smooth
surface, perfect chip removal.
TiN coating increases the tool life for intensive use.
Applications:
First choice: Steel 800 - 1000 N/mm2 & Cast Aluminum
Second choice: Steel 500 - 800 N/mm2
Not Suitable:
Abrasive Tough Steel
Hard Bronze
Treated Steel >= 60HRC
| Ordering no. HSS TiN Coated | D | d1 maxi | d2 | L |
| CM1304 | 5,3 | 1,5 | 4 | 40 |
| CM1309 | 6,3 | 1,5 | 5 | 45 |
| CM1316 | 8,3 | 2,0 | 6 | 50 |
| CM1321 | 10,4 | 2,5 | 6 | 50 |
| CM1324 | 12,4 | 2,8 | 8 | 56 |
| CM1328 | 15,0 | 3,2 | 10 | 60 |
| CM1331 | 16,5 | 3,2 | 10 | 60 |
| CM1335 | 20,5 | 3,5 | 10 | 63 |
| CM1337 | 25,0 | 3,8 | 10 | 67 |
| CM1344 | 31,0 | 4,2 | 12 | 71 |
Lubrication is recommended while working.
All measurements are in mm unless otherwise mentioned.

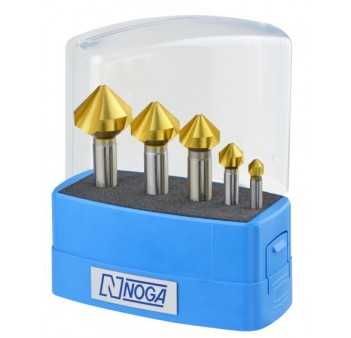

RELATED PRODUCTS
