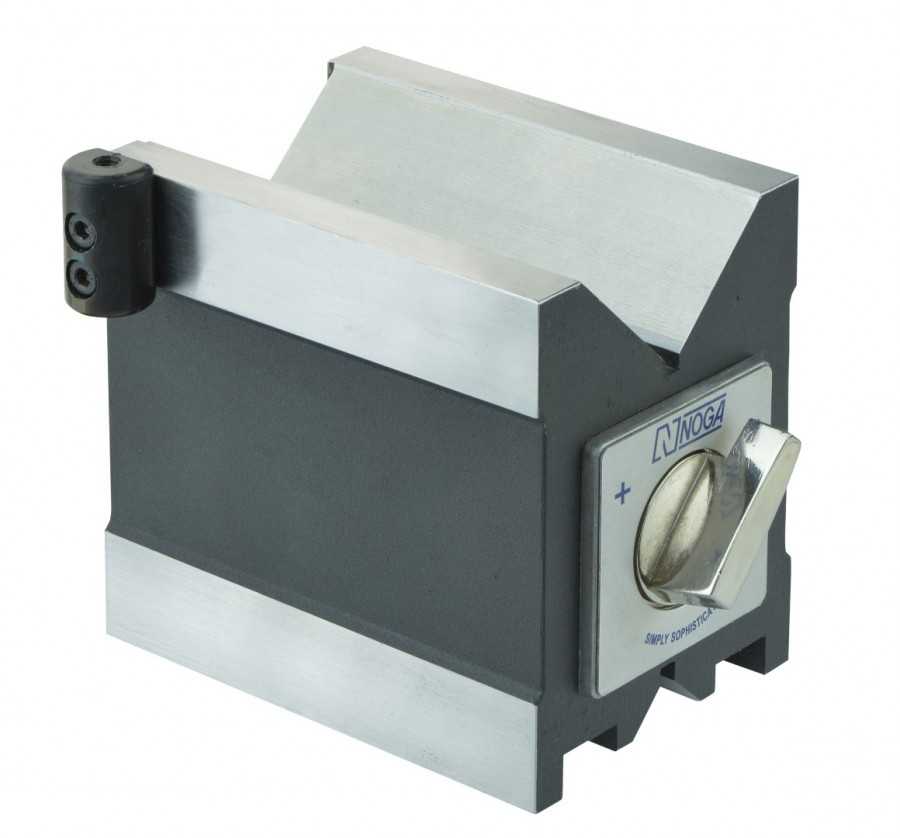

Heavy Duty V Block Magnet - VB1001
Features:
• Design for versatility and accuracy with a Noga NF & PH Holders
• All working surfaces are precision ground.
• Two precision V’s will hold round stock sizes form 8-65mm
• Powerful V Block magnetic controlled by ON/OFF knob to activate the magnet.
• Connector designed to hold Noga NF & PH Holders (Int. M5).
• Can be used for inspection work.
Specifications:
Clamping capacity: 8 - 52 mm
Weight: 2 kg
Optional NF & PH holders
- Clamping Capacity: Ø8 - Ø52
- Magnet Force: 500 N
- Weight: 2.0 Kg
- Magnet Length: 80 mm
- Magnet Width: 60 mm
- Magnet Height: 73 mm
