Articulated Holders FAB

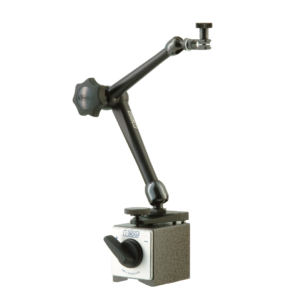

Noga has developed a unique fine adjustment mechanism which is placed on the magnetic base. This mechanism allows the hand to rest on the base rather than on the clamp of the indicator. Zero-setting becomes faster than with any other mechanism.

– Unique single direction Fine adjustment at base.
– Powerful on/off magnetic base.
– Holds 8mm or 3/8″ (see catalog no.) and dovetail.
– Unique central locking mechanism with Noga designed spring loaded bearing.
– Five axis holder.
– Instant fixation in any position.
– Easy to set up into required position.
– Black finished Arms.

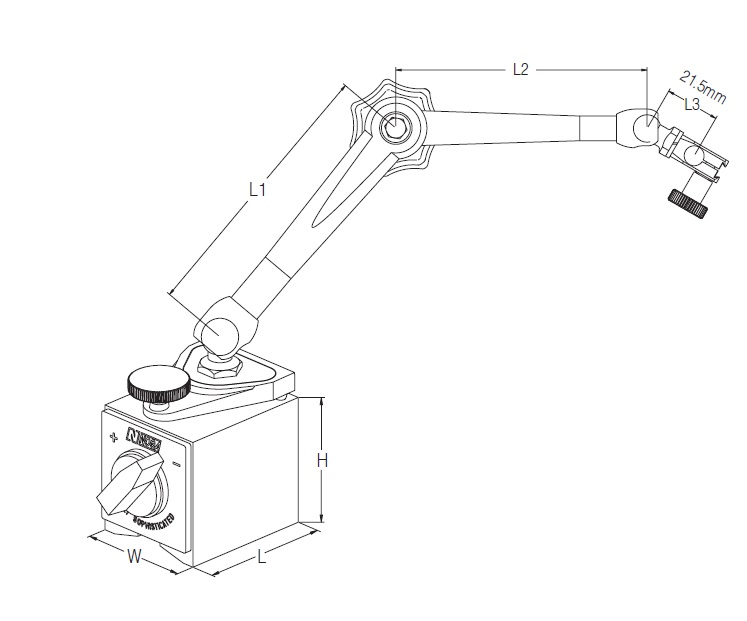

FAB drawing

Specifications Table

Holder Weight [Kg] Standard Clamp Arm Length Magnet
D Bottom Arm L1 Top Thread L2 Total L1 + L2 + L3 Force [N] Dimension L Dimension W Dimension H
NF10403 0.52 8 56 51 128.5 320 40 30 35
NF10433 0.52 3/8" 56 51 128.5 320 40 30 35
DG10503 1.4 8 110 101 232.5 800 60 50 55
DG10533 1.4 3/8" 110 101 232.5 800 60 50 55
MG10503 1.9 8 133 113 267.5 800 60 50 55
MG10533 1.9 3/8" 133 113 267.5 800 60 50 55
