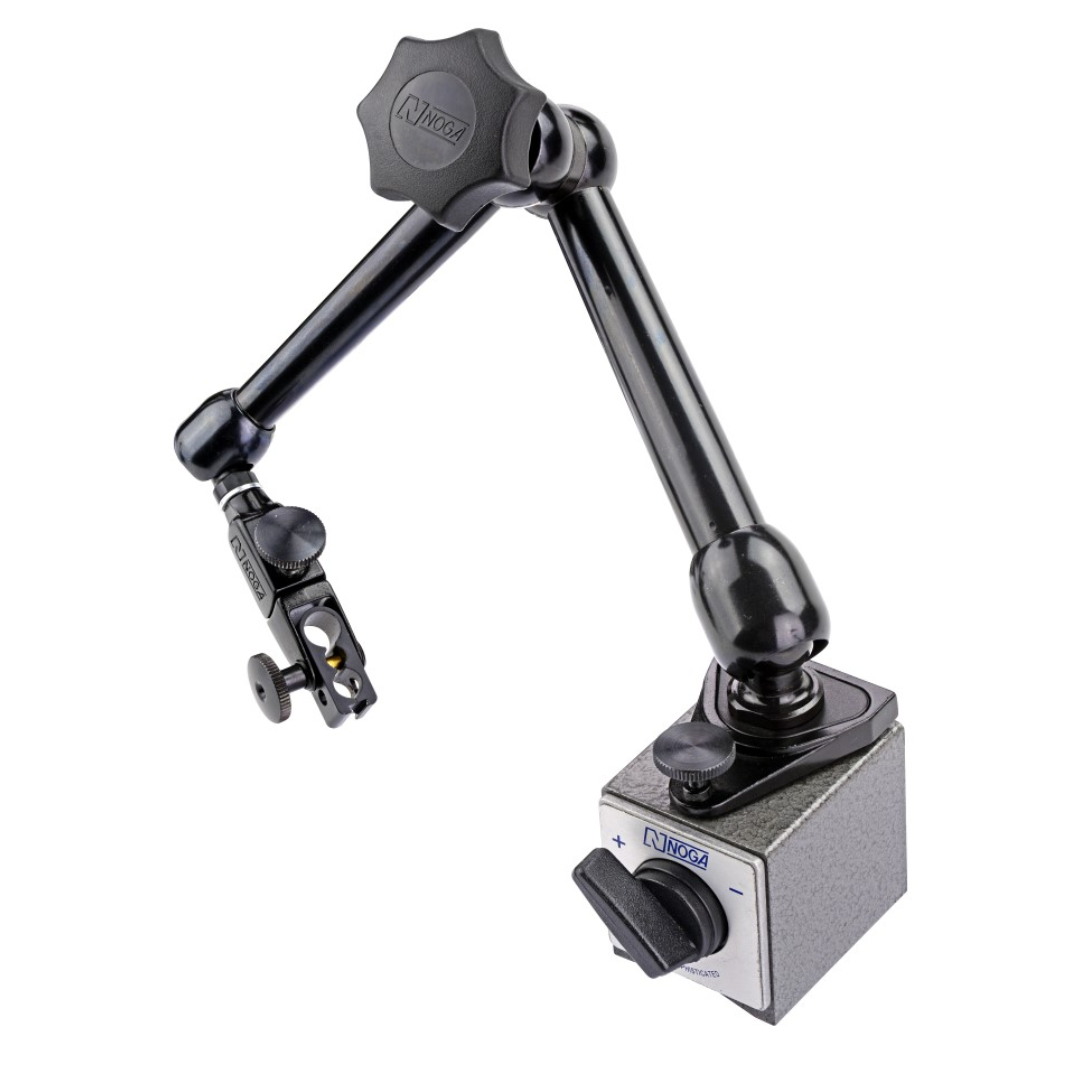

MG Holder with Double Fine Adjustment – MG6161

New Double Fine Adjustment:

Top: universal swivel clamp.

Bottom: Unique single direction.

– Unique central locking mechanism with Noga designed spring loaded bearing.
– Five-axis holder.
– Powerful on/off magnetic base 80 Kg. (176lbs)
– Instant fastens in any position.
– Fast and easy to set up gauges into required position.
– Black finished Arms.



  • Clamp Holds: 6mm, 8mm,3/8″and dovetail
  • Bottom thread: Ext. M8
  • Weight: 2.00 Kg
  • Bottom Arm: 133mm
  • Top Arm: 113mm
  • Total Length: 317mm
  • Magnet Force: 800 N
  • Magnet Width: 50mm
  • Magnet Length: 60mm
  • Magnet Height: 55mm
