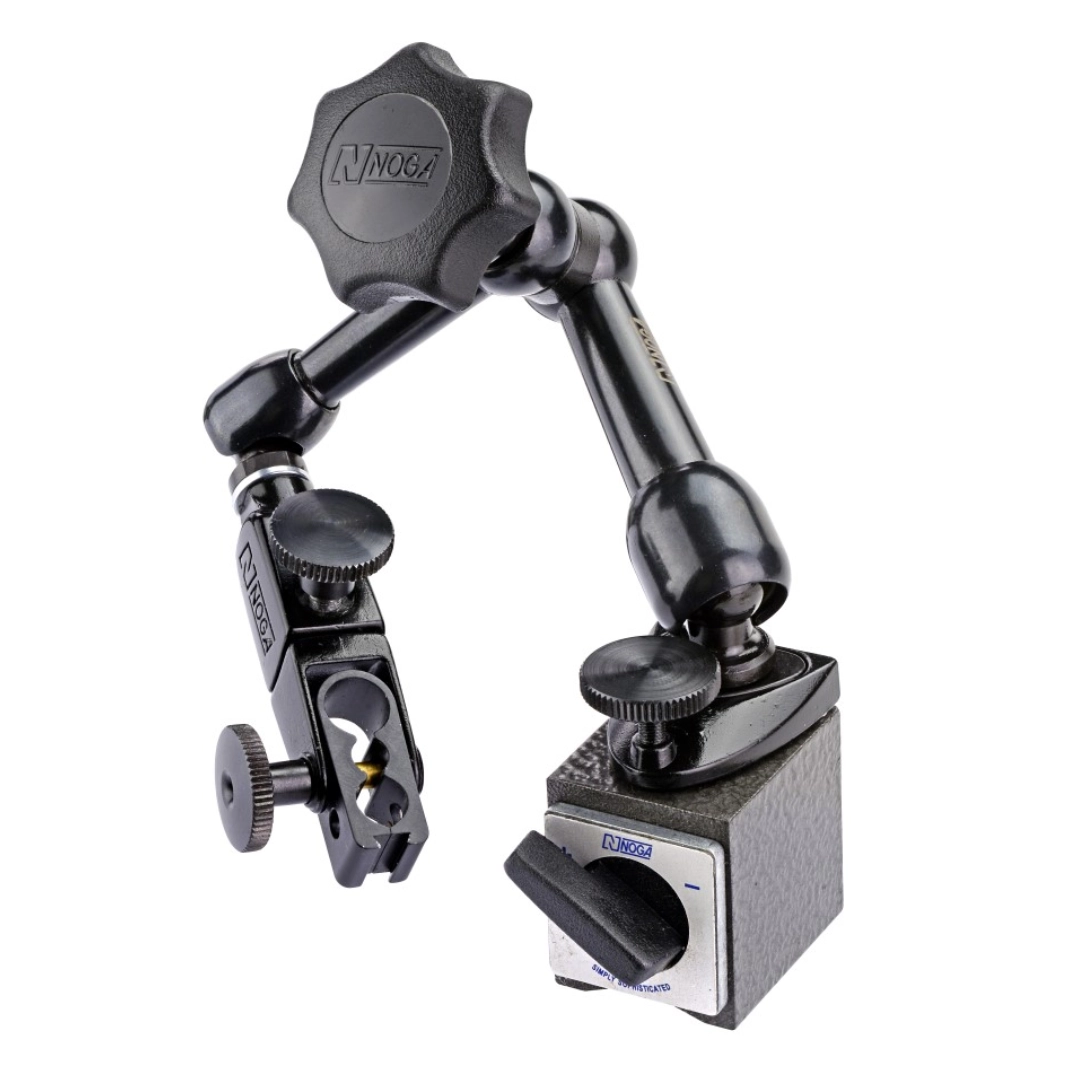

NF Holder with Double Fine Adjustment – NF6160

New Double Fine Adjustment:

Top: universal swivel clamp.

Bottom: Unique single direction.

– Unique central locking mechanism with Noga designed spring loaded bearing.
– Five axis holder.
– Powerful on/off magnetic base 32 Kg. (70lbs)
– Instant fastens in any position.
– Fast and easy to set up gauges into required position.
– Black finished Arms.

Clamp Holds: 6mm, 8mm,3/8″and dovetail
Bottom thread: Ext. M5
Weight: 0.55 Kg
Bottom Arm: 56mm
Top Arm: 51mm
Total Length: 178mm
Magnet Force: 320 N
Magnet Width: 30mm
Magnet Length: 40mm
Magnet Height: 35mm
