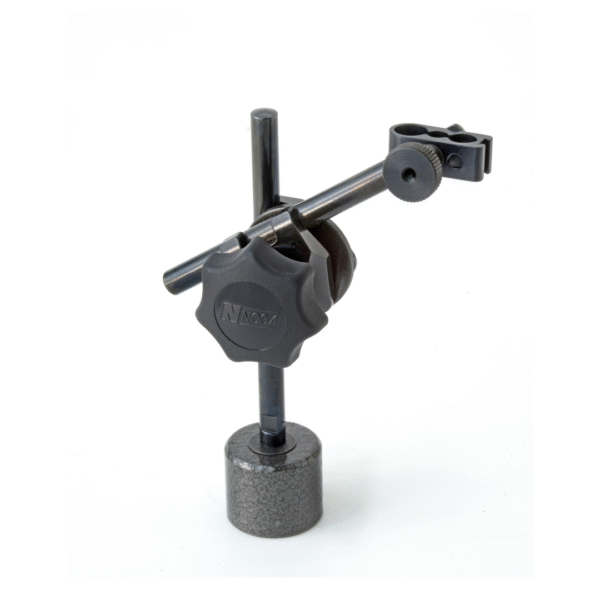

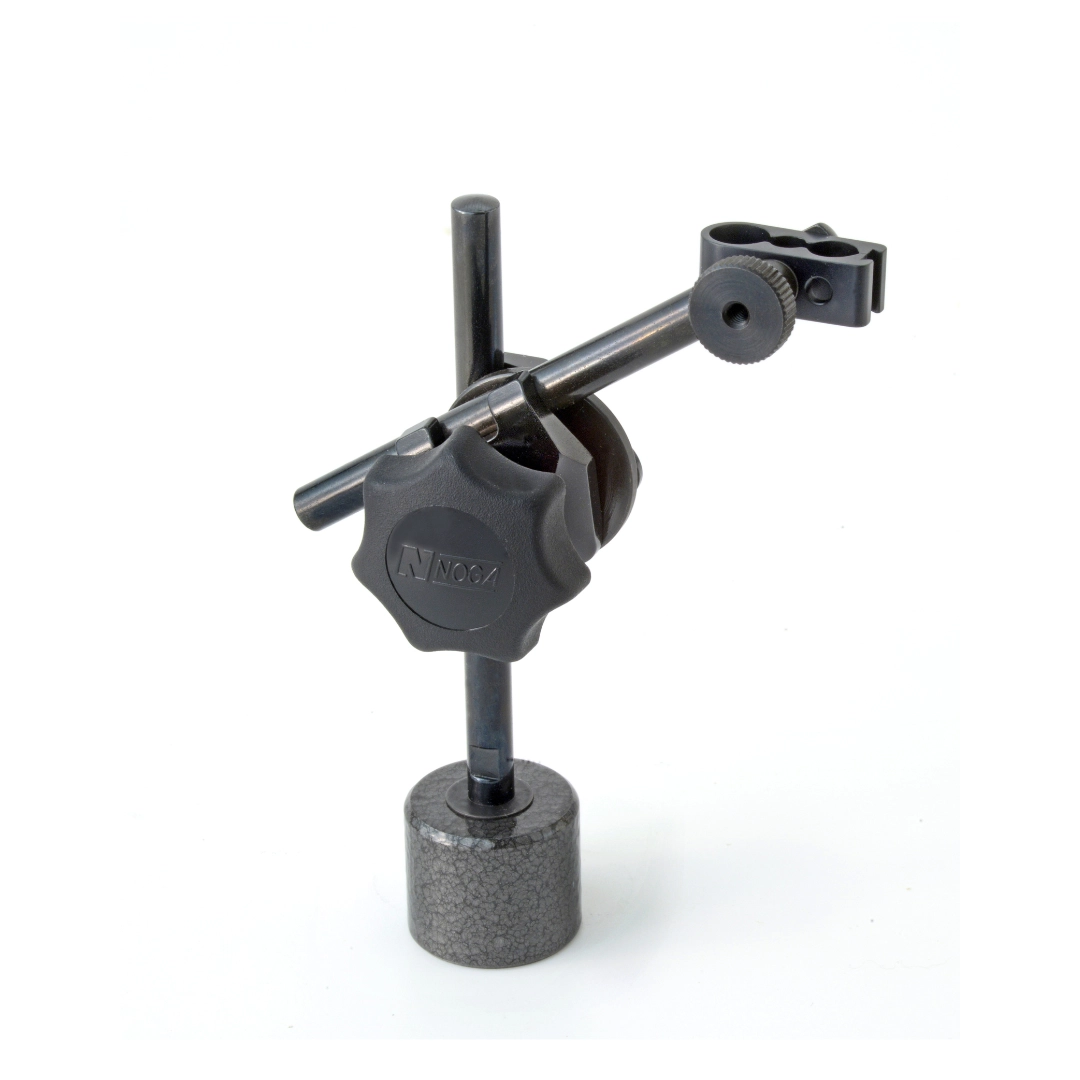

PH Mini Holder – PH5000

– 20kg (44lbs) round permanent magnetic base.
– Universal Swivel Clamp for all dial and test indicators.
– Strong arm lock by using the unique 3-point system.
– Easy to set up gauges into required position- Black finished arms.

• Weight: 0.36 Kg
• Clamp Holds: 6mm, 8mm,3/8″and dovetail
• Clamp Order P/N: FA1210
• Post Length and diameter: Ø 8 x 110mm
• Arm length and diamter: Ø 8 x 110mm
• Magnet Force: 200 N
• Magnet Diameter: 30mm
• Magnet Height: 25mm
