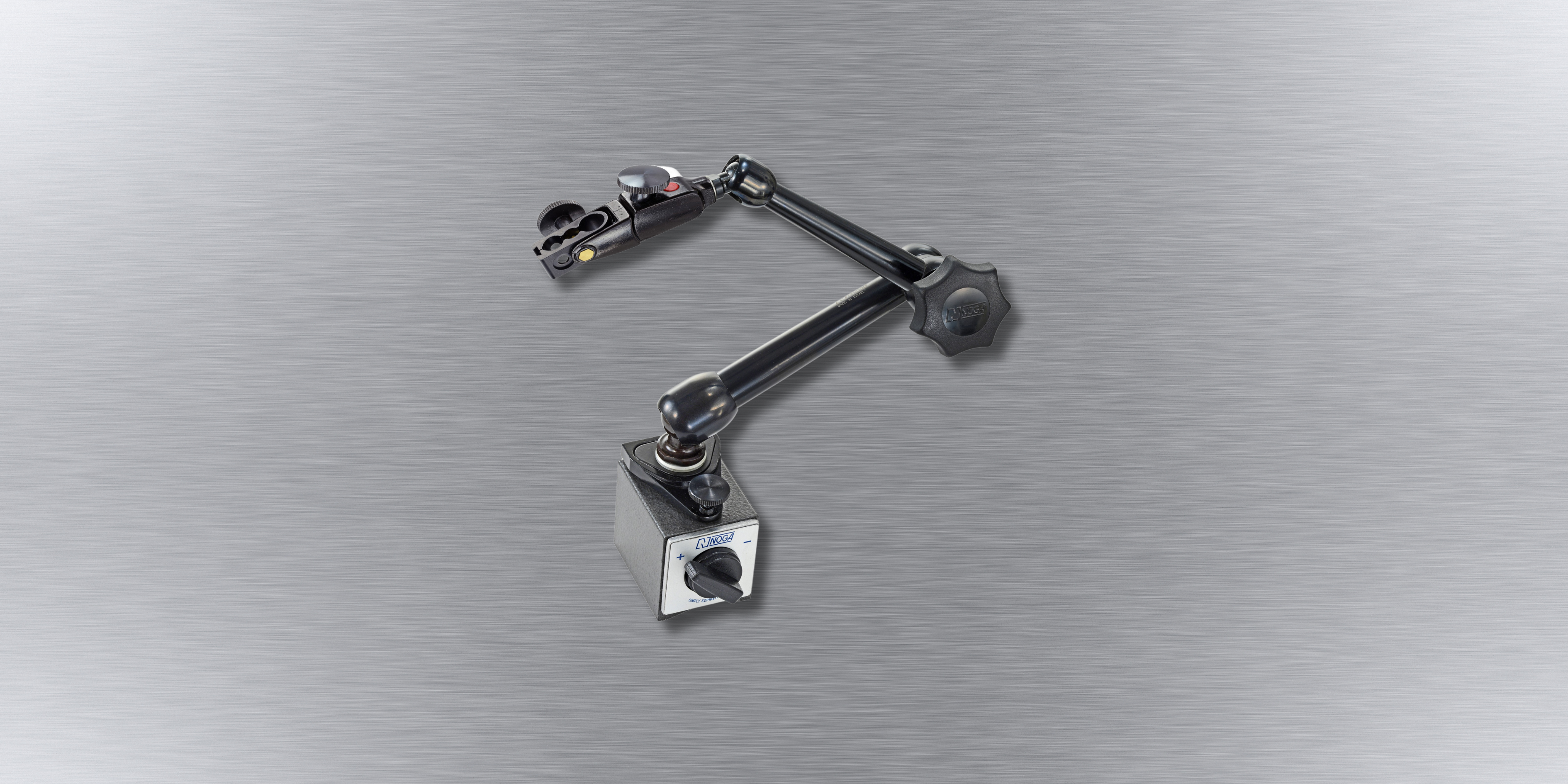

Articulated Holders FAT & FAB

NOGA articulated holders with
double fine adjustment.

New double fine adjustment:
BOTTOM: unique single direction
TOP: universal swivel clamp
• Holds 6 mm, 8 mm, 3/8” and dovetail.
• Unique central locking mechanism with Noga designed
spring loaded bearing.
• Five axis holder.
• Powerful ON/OFF magnetic base.
• Instantly fastens in any position.
• Fast and easy to set up gauges into required position.
• Black finished arms.

Specifications Table

Order no. Holder Arm Length Magnet
Bottom Thread [D] Weight [Kg] Bottom Arm L1 Top Thread L2 Total L1 + L2 + L3 Force [N] Dimension (L x W x H)

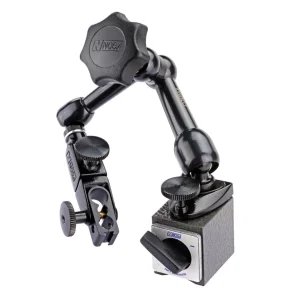

NF6160 Ext. M5 0.55 56 51 178 320 40 x 30 x 35

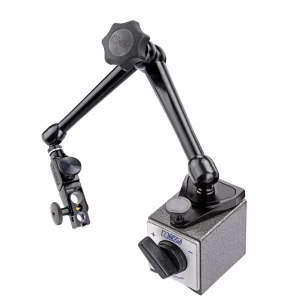

DG6160 Ext. M8 1.43 110 101 282 800 60 x 50 x 55

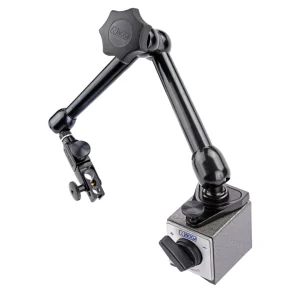

MG6161 Ext. M8 1.97 133 113 317 800 60 x 50 x 55
