Modular Holders

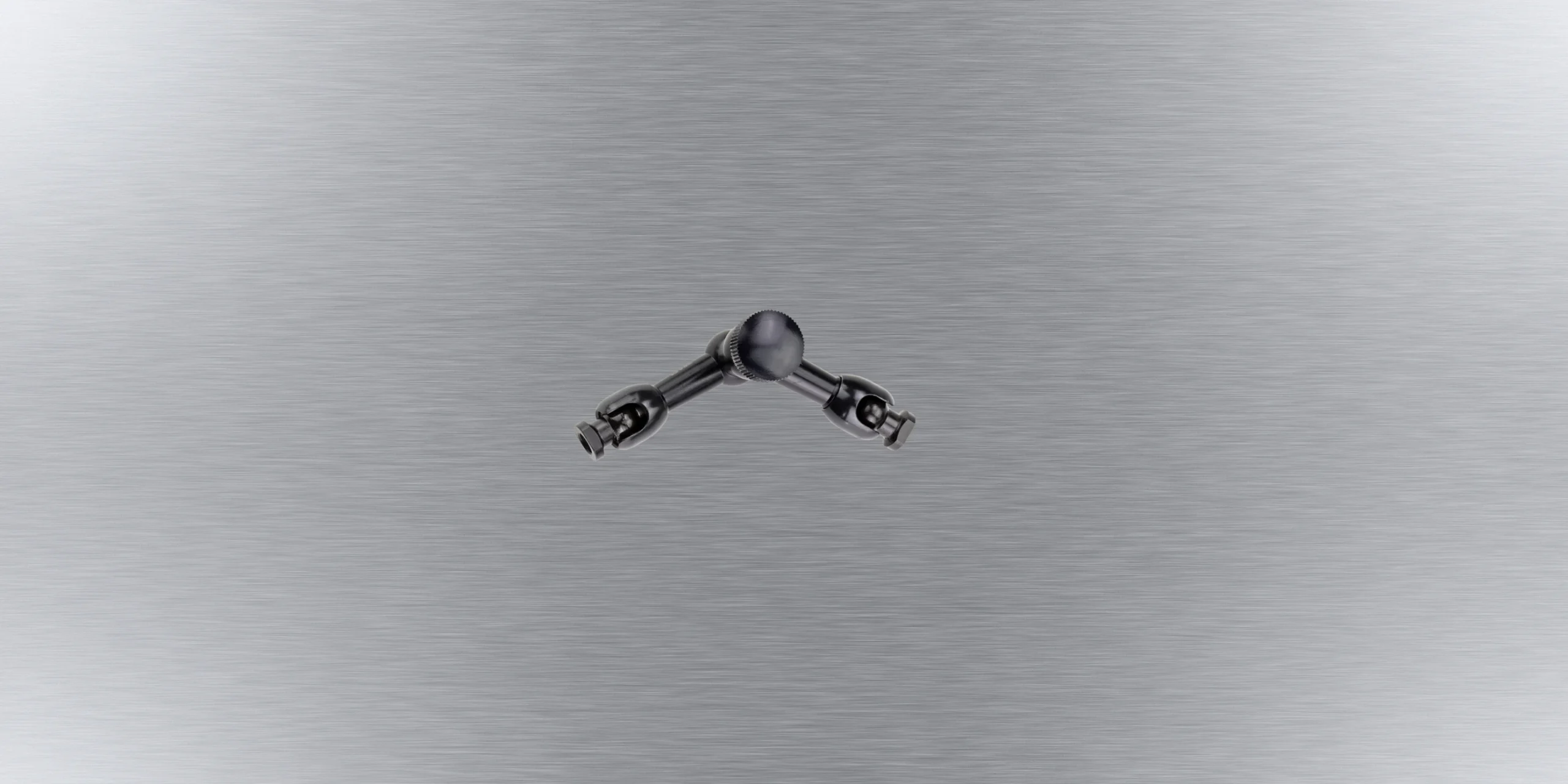

NOGA Modular holders.

• Six different sizes of articulated
arms are offered for a wide range
of applications.
• Choose the arms that fit your needs.
• A range of accessories are shown in Accessories category.
• Custom-made arms and accessories are available upon request.Minimum quantity 500 pcs.

Specifications Table

Order no.	Int. Thread
	Weight [Kg]	D1	D2	L1	L2
LC6100	0.121	M6 Int.	M6	38	38
NF60003	0.21	M6 Int.	M6	56	51
DG60003	0.25	M6 Int.	M6	110	101
MG60003	0.75	M8 Int.	M6	133	113
MG70003	0.80	M8 Int.	M6	163	113
MA60003	3.00	M10 x 1.25 Int.	M6	286.5	222.5
