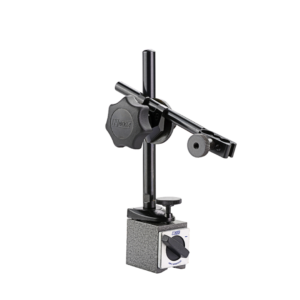

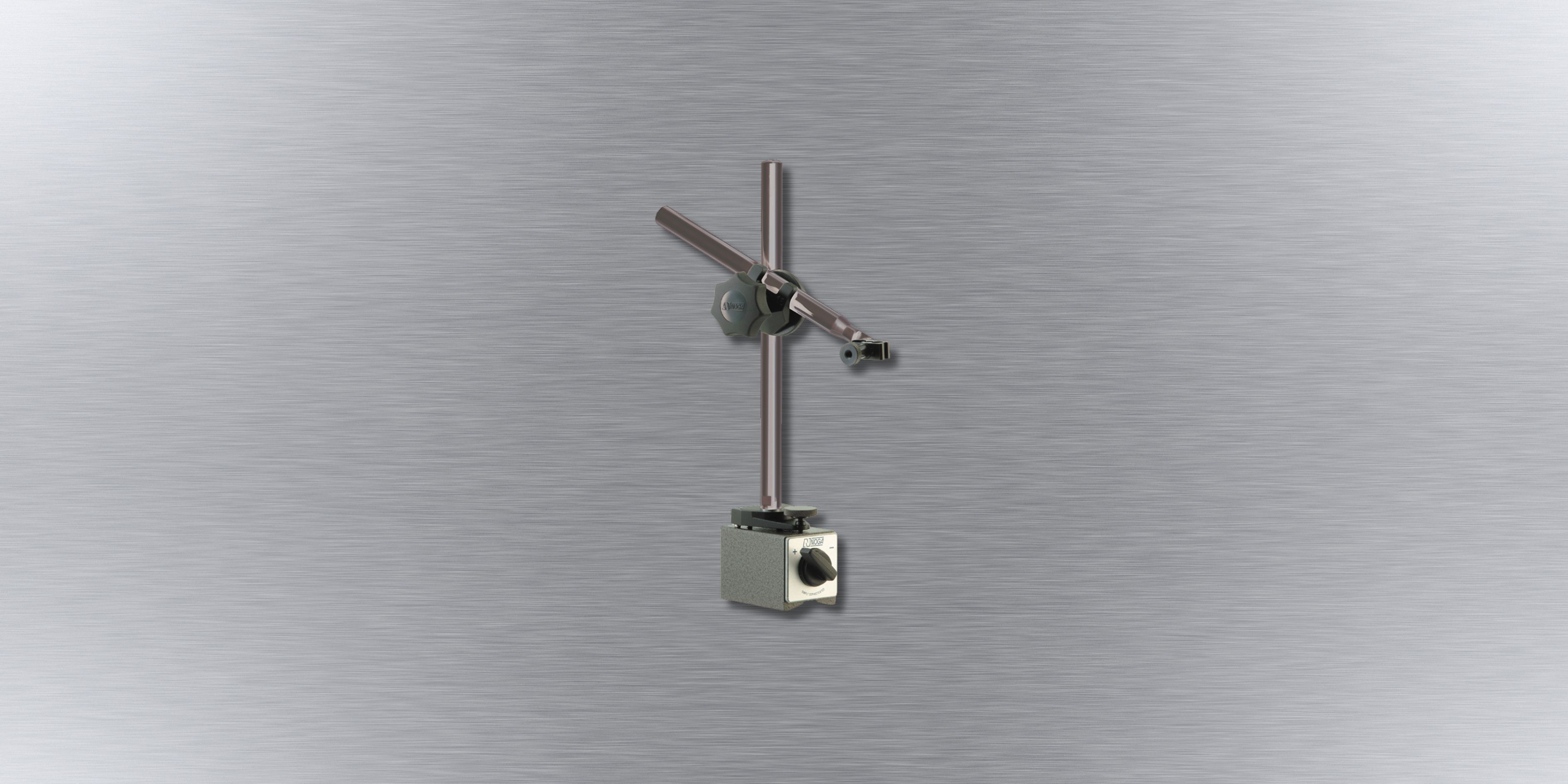

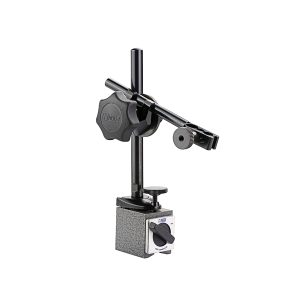

PH Holders FAB
PH holders with Noga unique fine adjustment at base.
– Single direction Fine adjustment at base.
– Powerful on/off magnetic base.
– Universal Swivel Clamp for all dial and test indicators.
– Holds 6mm, 8mm,3/8″,dovetail and back lug.
– Strong arm lock by using the unique 3-point system.
– Easy to set up gauges into required position.
– Black finished arms.

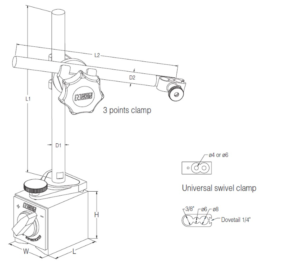

Specifications Table
| Order no. | Holder | Arm Length and Diameter | Magnet | |||
|---|---|---|---|---|---|---|
| Weight [kg] | Post Dia. (D1) X Length (L1) | Arm Dia. (D2) X Length (L2) | Force [N] | Dimension (L x W x H) | ||
| PH3101 | 0.5 | Ø10 x 120 | Ø8 x 110 | -- | -- | |
| PH3100 | 0.5 | Ø10 x 120 | Ø8 x 110 | 320 | 40 x 30 x 35 | |
| PH2040 | 1.7 | Ø14 x 203 | Ø12 x 185 | 800 | 60 x 50 x 55 | |
| PH4016 | 2.45 | Ø16 x 260 | Ø16 x 225 | 1000 | 70 x 50 x 55 | |
