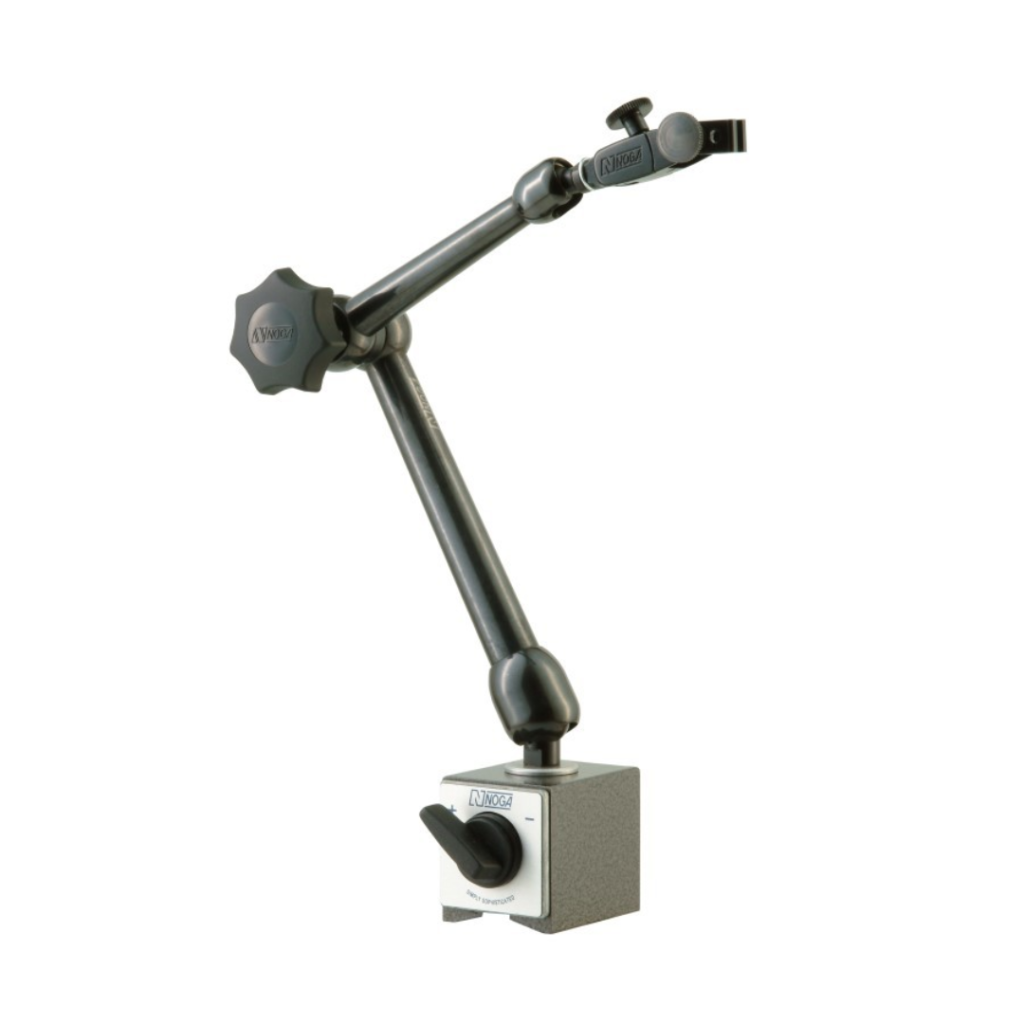

Large MG Holder – MG71003

New Fine adjustment on Top with universal swivel clamp.

– Unique central locking mechanism with NOGA designed spring loaded bearing.
– 5 axis holder.
– powerful on/off magnetic base.
– Instant fixation in any position.
– Fast and easy to set up gauges into required position.
– Black finished Arms.

• Weight: 1.95 Kg
• Bottom thread: Ext. M8
• Clamp Holds: 6mm, 8mm,3/8″and dovetail
• Clamp Order P/N: FA1500
• Bottom Arm: 163.5mm
• Top Arm: 113mm
• Magnet Force: 800 N
• Magnet Width: 50mm
• Magnet Length: 60mm
• Magnet Height: 55mm
