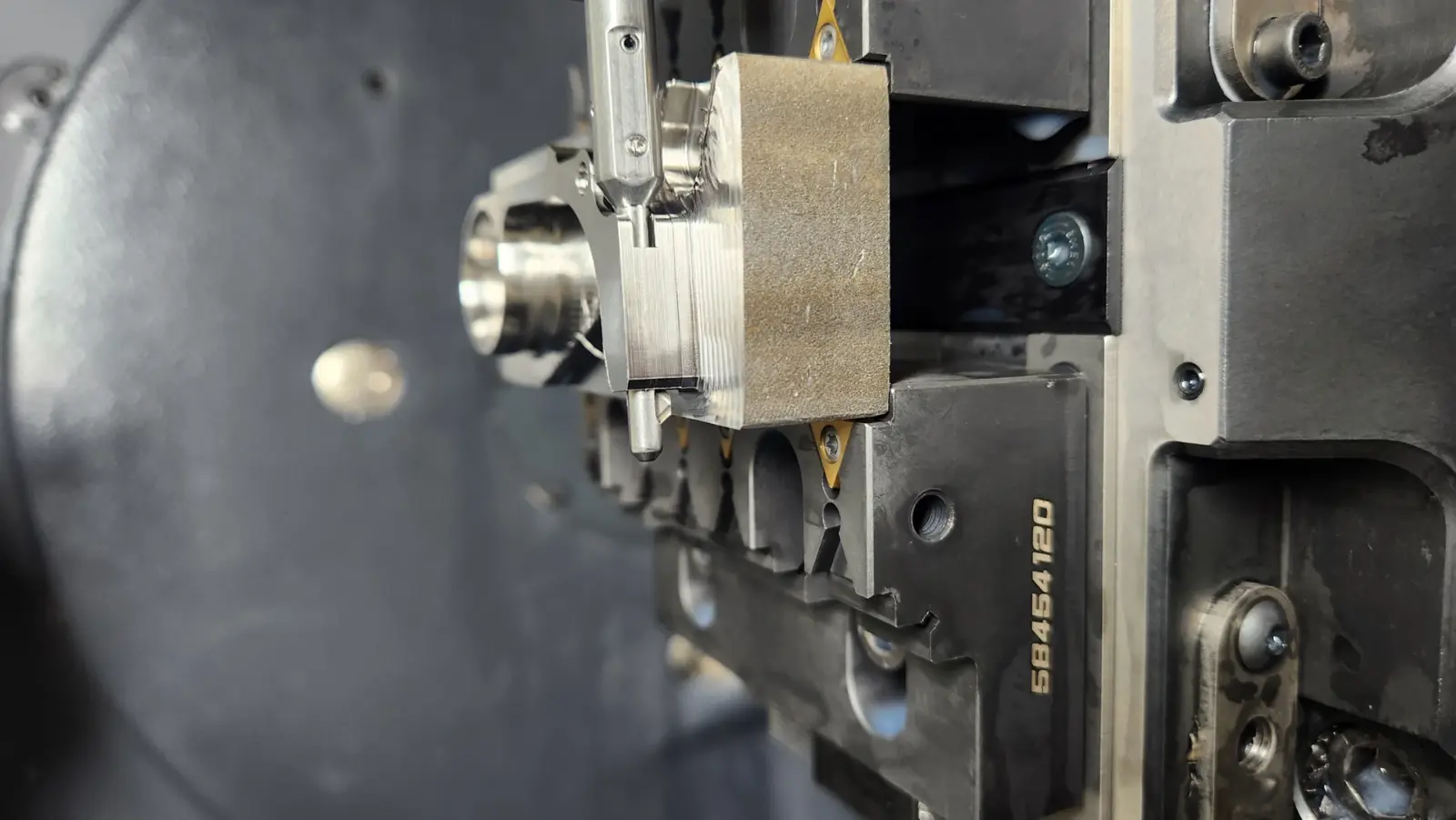

Dual-Sided Thread Deburring in 38 HRC Hardened Steel.
Remove front and rear burrs from machined threads in one automated pass. In AISI 4340 tool steel hardened to 38 HRC, a UBURR™ UB1085 tool-holder with a UB2060 blade deburred Ø8.5 mm threaded holes at 800 RPM, leaving clean 0.2×45° chamfers with no significant blade wear after 50 holes.
See the trial result
UB1085 · UB2060- Tool-holder
- UB1085
- Spindle speed
- 800 RPM
- Table feed
- 200 mm/min
- Chamfer
- 0.2×45°
01 / The application
Burrs on both sides of a thread.
The task
Evaluate the UBURR tools on machined threads and eliminate burrs from both the front and rear of the drilled holes.
Application details
- Industry
- General
- Material
- AISI 4340 (W.Nr. 1.6928) tool steel, 38 HRC
- Pilot hole
- Ø8.5 mm (0.335")
- Pilot hole length
- H1 = 20 mm (0.787")
- Machine
- DMG Mori Seiki AKIRA Mi745

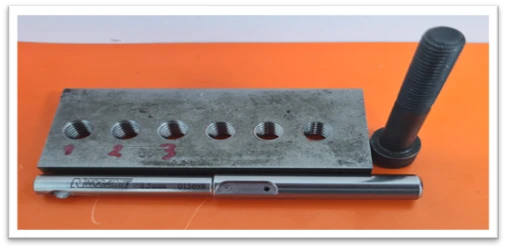

Part – top side
SUPPLIED PHOTO
02 / Tool & parametersThe tool behind
The tool behind
the result.
UBURR tool-holder
UB1085
UB-d085-C10-H53-L115
- Pilot hole
- Ø8.5 mm
- Blade
- UB2060
UBURR blade
UB2060
UB-TSB-5-PL
| Workpiece material | AISI 4340, 38 HRC |
|---|---|
| Pilot hole diameter | Ø8.5 mm (0.335") |
| Pilot hole length | 20 mm (0.787") |
| Machine | DMG Mori Seiki AKIRA Mi745 |
| Spindle speed | 800 RPM |
| Table feed | 200 mm/min (8 in/min) |
| Cutting speed | 22 m/min (72 sfm) |
| Feed per tooth | 0.25 mm (0.01") |
| Coolant | External air |
| Reported result | 0.2×45° chamfers, no significant wear after 50 holes |
These values describe this trial. Confirm the setup for your own application with NOGA MT.
