NOGA MT · UFIBER® ADVANCED CERAMIC TOOLS

UFIBER® Ceramic Tools for Deburring, Polishing & Finishing

Ceramic Fiber Brushes, Radial Ceramic Fiber Discs and Ceramic Diamond Stones — one ceramic technology for precision deburring, grinding, finishing and polishing on CNC machines, robots and portable hand-held drives.

FIND YOUR UFIBER TOOLCERAMIC FIBER BRUSHESTECHNICAL CENTER
Three Tool LinesBrushes, radial discs and diamond stones in one finishing system.
Self-Sharpening Ceramic FibersFresh abrasive is continuously exposed for stable, repeatable results.
Automation ReadyCNC machines, machining centers, robots — or hand-held on the Portable E-Pack.

Choose Your UFIBER® Tool

Start with the job: flexible brushing of edges, surfaces and holes; radial edge work in narrow grooves; or diamond finishing of ultra-hard materials.

Brushes

Ceramic Fiber Brushes

Deburring, polishing and finishing of edges, surfaces, cross-holes, ends and small features.

Diameters
Ø1–Ø100 mm
Grits
#150–#6000
Types
Surface · Cross-Hole · End · Point
View brushes ↓
Radial Discs NEW

Radial Ceramic Fiber Discs

Ultra-thin 0.8 mm discs that cut with the outer edge — for grooves, ribs, slots and side walls.

Diameters
Ø13–Ø30 mm
Grits
#150–#1000
Max speed
9,000 RPM · electric
View radial discs ↓
Diamond Stones NEW

Ceramic Diamond Stones

Diamond abrasive in a ceramic-fiber structure for carbide, hardened steel, ceramics, glass and EDM scale.

Diameters
Ø1.0–Ø3.0 mm
Grits
#200–#800 diamond
Max speed
60,000 RPM
View diamond stones ↓
Compare the three tool lines +
BrushesRadial DiscsDiamond Stones
Cutting actionFlexible bristle tipsOuter edge of a 0.8 mm discFull surface, multi-directional
Best forEdges, surfaces, cross-holes, ends, small featuresNarrow grooves, slots, rib bottoms, side walls, profilesUltra-hard materials, EDM scale, polishing & lapping
DiametersØ1–Ø100 mmØ13–Ø30 mmØ1.0–Ø3.0 mm
Grits#150–#6000#150–#1000#200–#800 (diamond)
Max speedUp to 20,000 RPM (by type & size)9,000 RPM60,000 RPM (≤30,000 typical)
DriveCNC, robot; End & Point also on Portable E-PackElectric spindle, CNC, robot, E-Pack — no air toolsCNC, pneumatic tools, E-Pack
Range173 SKUs30 discs + 2 shanks20 SKUs

Explore the UFIBER® Tool Lines

Select a tool line for key data, grit colors and compatible drives — then open its product page for full sizes, SKUs and machining data.

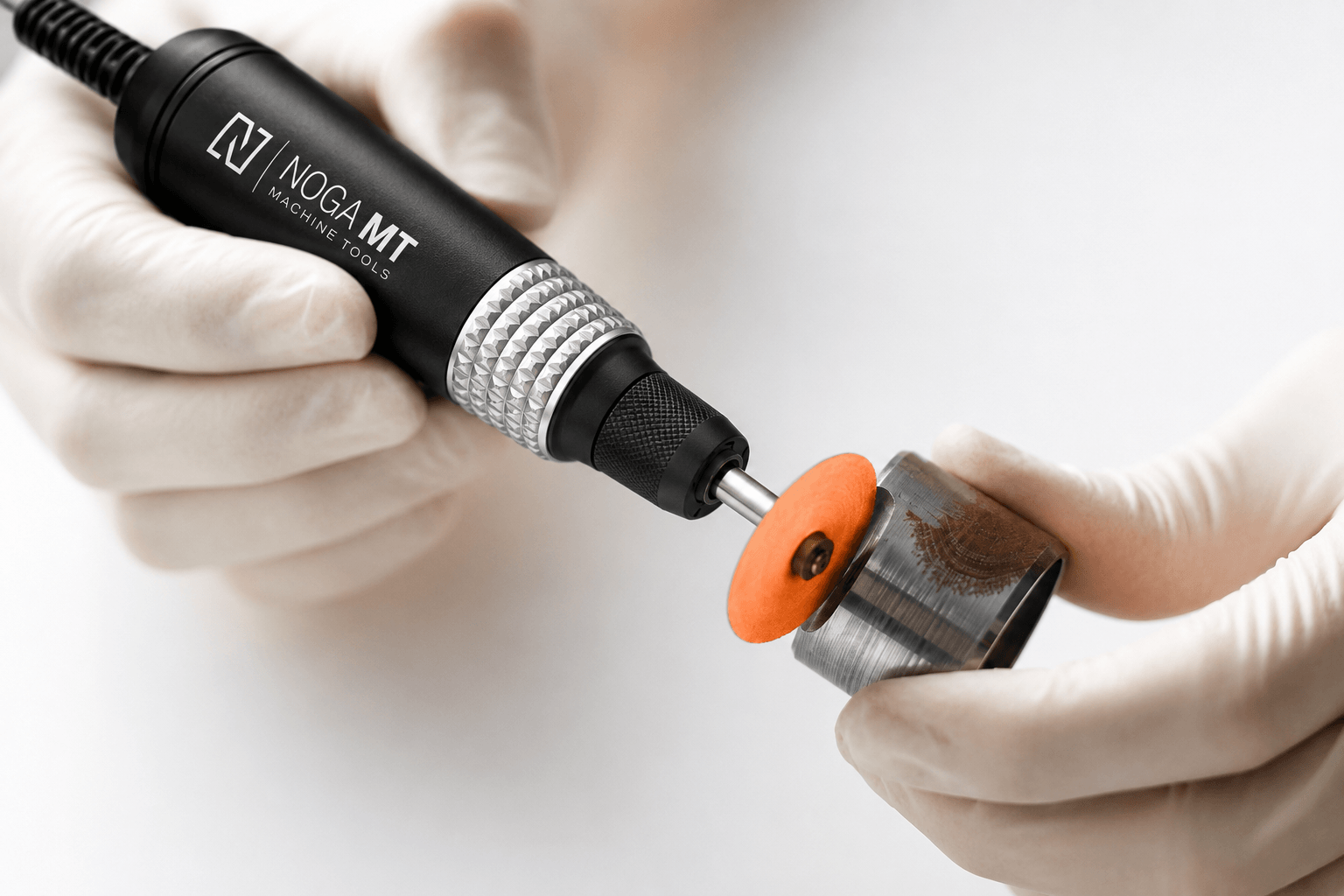

UFIBER Radial Ceramic Fiber Disc on the Portable E-Pack handpiece

Radial Ceramic Fiber Discs

Ultra-thin radial abrasive discs for precision deburring, grinding, edge finishing and polishing. The outer circumference cuts, while the 0.8 mm profile reaches grooves, ribs, side walls and slots.

Thickness
0.8 mm / 0.0315″
Diameters
Ø13 · 19 · 22 · 25 · 30 mm
Grits
#150–#1000
Max speed
9,000 RPM (6,000–8,000 rec.)

Use on: Electric spindle or rotary tool · CNC · Robot · Portable E-PackNot for air tools

Radial disc grit #150 green
#150Green
Radial disc grit #200 pink
#200Pink
Radial disc grit #400 violet
#400Violet
Radial disc grit #600 orange
#600Orange
Radial disc grit #800 blue
#800Blue
Radial disc grit #1000 white
#1000White

Range: 30 discs (5 diameters × 6 grits) + 2 clamping shanks, UF7023 (Ø2.35 mm) and UF7030 (Ø3 mm).

FULL DISC RANGE & MACHINING DATA →PORTABLE E-PACK →
UFIBER Ceramic Diamond Stone point-type finishing tool

Ceramic Diamond Stones

Point-type stones combining diamond abrasive with a nano-engineered ceramic fiber structure — self-sharpening, clog-resistant and can be dressed to custom shapes. For tungsten carbide, hardened steels, ceramics, glass and EDM-processed surfaces.

Diameters
Ø1.0–Ø3.0 mm
Grits
#200–#800 diamond
Max speed
60,000 RPM (≤30,000 typical)
Contact force
≈1 N, keep below 5 N

Use on: CNC machines · Pneumatic tools at controlled high speed · Portable E-Pack

#200BlackHeavy removal / EDM scale
#400SilverPre-finishing
#600Forest greenFine finishing
#800GreenPolishing & lapping

Range: 20 stones (5 diameters × 4 grits).

FULL STONE RANGE & SETUP →PORTABLE E-PACK →

See UFIBER in Action

Click a video to watch it on YouTube.

Frequently Asked Questions

Which UFIBER® tools are available?
UFIBER is a complete line of advanced ceramic finishing tools: Ceramic Fiber Brushes (Surface, Cross-Hole, End-Type and Point-Type), Radial Ceramic Fiber Discs and Ceramic Diamond Stones, supported by shanks, sleeves, Floating Dampers and the UF9999 Portable E-Pack.
Should I use a brush, a radial disc or a diamond stone?
Use a brush for flexible contact on edges, surfaces, cross-holes, ends and small features. Use a Radial Ceramic Fiber Disc for radial edge work in narrow grooves, slots, rib bottoms and side walls. Use a Ceramic Diamond Stone for ultra-hard materials such as tungsten carbide, hardened steel, ceramics and glass, and for EDM-scale removal, polishing and lapping.
Which grit sizes are available, and where do I start?
Brushes are available from #150 to #6000, Radial Discs from #150 to #1000 and Diamond Stones from #200 to #800 (diamond grain size). Choose the starting grit by burr condition, material and required finish, then optimize on the actual component.
What speed should I use for the Radial Ceramic Fiber Disc?
The maximum speed is 9,000 RPM; 6,000–8,000 RPM is recommended. Use the disc only with a suitable electric spindle or rotary tool — not with air tools — and wear eye and face protection.
What speed and contact force should I use for Ceramic Diamond Stones?
The maximum speed is 60,000 RPM, but up to 30,000 RPM is sufficient for most applications. Target a light contact force of about 1 N and keep it below 5 N. Perform a test run first and confirm there is no runout or vibration.
Can UFIBER be used on CNC machines and robotic systems?
Yes. UFIBER tools are suitable for automated finishing with CNC machines, machining centers and robotic systems, as well as controlled portable or hand-held applications when the correct tool and process are used.
Which UFIBER tools work with the UF9999 Portable E-Pack?
End-Type Brushes, Point-Type Brushes, Radial Ceramic Fiber Discs and Ceramic Diamond Stones are compatible with the UF9999 Portable E-Pack.
Where can I find machining recommendations and technical material?
See the UFIBER Technical Center for brushes and the Radial Disc page for disc machining data and an RPM calculator. Application examples are in the NOGA case studies and literature in the catalog section.

Need Help Selecting the Right UFIBER® Tool?

Send us your part drawing, material, burr condition and machine details. Our team will suggest a tool, starting grit and process direction — or get an instant starting point from the UFIBER AI Assistant.

REQUEST APPLICATION SUPPORTOPEN UFIBER AI ASSISTANT
