NOGA MT · UFIBER® PRECISION FINISHING

UFIBER® Radial Ceramic Fiber Disc Precision Deburring, Grinding & Polishing

Q: What is the UFIBER® Radial Ceramic Fiber Disc?

An ultra-thin 0.8 mm / 0.0315″ ceramic-fiber abrasive disc that cuts with its outer edge. It is used for precision deburring, edge finishing, grinding and polishing of grooves, slots, rib bottoms, side walls and other narrow features.

Q: Which disc diameters are available?

Five diameters: Ø13 mm (0.512″), Ø19 mm (0.748″), Ø22 mm (0.866″), Ø25 mm (0.984″) and Ø30 mm (1.181″).

Q: Which grit sizes are available?

Six color-coded grits: #150 green, #200 pink, #400 violet, #600 orange, #800 blue and #1000 white — from heavy burr removal to ultra-fine polishing.

Q: What is the maximum speed?

The maximum speed is 9,000 RPM; 6,000–8,000 RPM is recommended. Never exceed the lowest rated speed of the disc, shank, spindle or machine.

Q: Which rotary tool should I use?

Use a suitable, rigid electric rotary tool or spindle — or the UF9999 Portable E-Pack. Pneumatic (air) tools are not recommended for this disc.

Q: How is the disc mounted?

On a UF7023 (Ø2.35 mm) or UF7030 (Ø3 mm) disc clamping shank with an M1.6 × 0.35 mm clamping screw and washer. Confirm the disc runs true before contacting the workpiece.

Q: Can the disc be dressed or reshaped?

Yes, but only with a suitable diamond dressing tool and light, controlled contact. Inspect the disc and mounting again after dressing and check that it runs true before restarting.

Ultra-thin 0.8 mm ceramic-fiber radial abrasive disc for controlled deburring, grinding, edge finishing and polishing. Designed for grooves, ribs, side walls, slots and other narrow or difficult-to-access features.

0.8 mm Ultra-Thin
Radial Cutting Action
6 Grit Grades
CNC / Robot Ready
E-Pack Compatible
Electric Drive Only

Product Range ↓ Machining Data & RPM ↓ Portable E-Pack ↗

UFIBER Radial Ceramic Fiber Disc mounted on the UF9999 Portable E-Pack handpiece

CD RADIAL
FINISHING

Disc Thickness 0.8 mm Ultra-thin radial profile

Disc Diameters Ø13–30 mm Five standard diameters

Grit Range #150–#1000 Six color-coded grades

Maximum Speed 9,000 RPM 6,000–8,000 RPM recommended

What is the UFIBER® Radial Ceramic Fiber Disc?

An ultra-thin 0.8 mm ceramic-fiber abrasive disc for precision deburring, grinding, edge finishing and polishing. Its outer circumference provides controlled radial cutting, while the thin profile reaches grooves, ribs, side walls, slots and other narrow or difficult-to-access features.

Five diameters from Ø13 to Ø30 mm, six grits from #150 to #1000. Use it by hand on the UF9999 Portable E-Pack, or integrate it into CNC machines and robotic cells with a compatible electric spindle.

Radial cutting actionControlled finishing with the outer edge of the disc.
Ultra-thin 0.8 mmReaches narrow grooves, slots and confined profiles.
Precision deburringControlled burr removal and edge refinement.
Grinding & polishingFrom coarse removal to ultra-fine polishing.
Portable operationRuns on the UFIBER Portable E-Pack UF9999.
Automation readyCNC machines and robotic arms with an electric spindle.

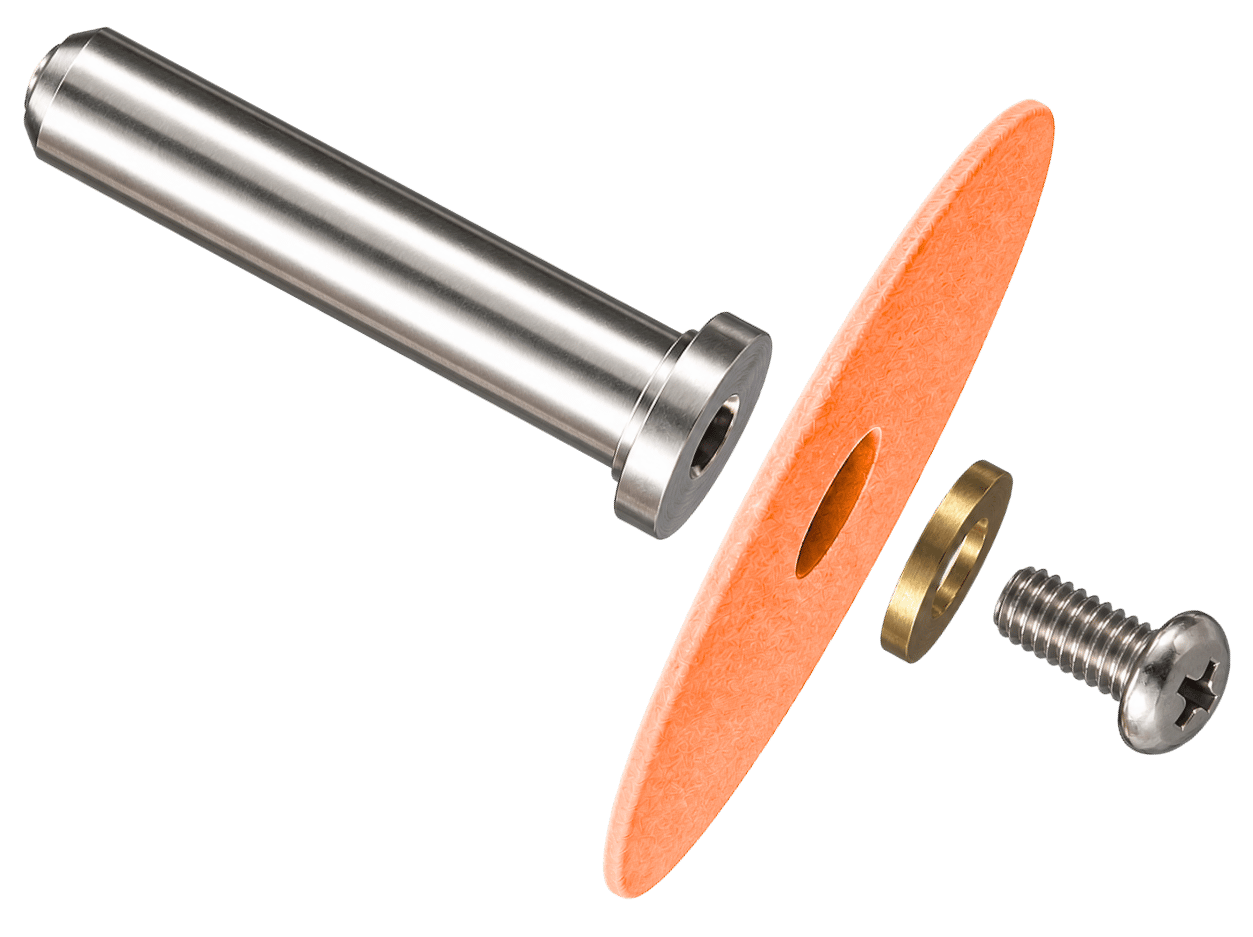

Exploded view of the UFIBER disc, clamping shank, washer and screw — Disc, clamping shank, washer and M1.6 screw

Grit & Color Guide

Six color-coded grits. Lower numbers are coarser for burr and stock removal; higher numbers are finer for finishing and polishing.

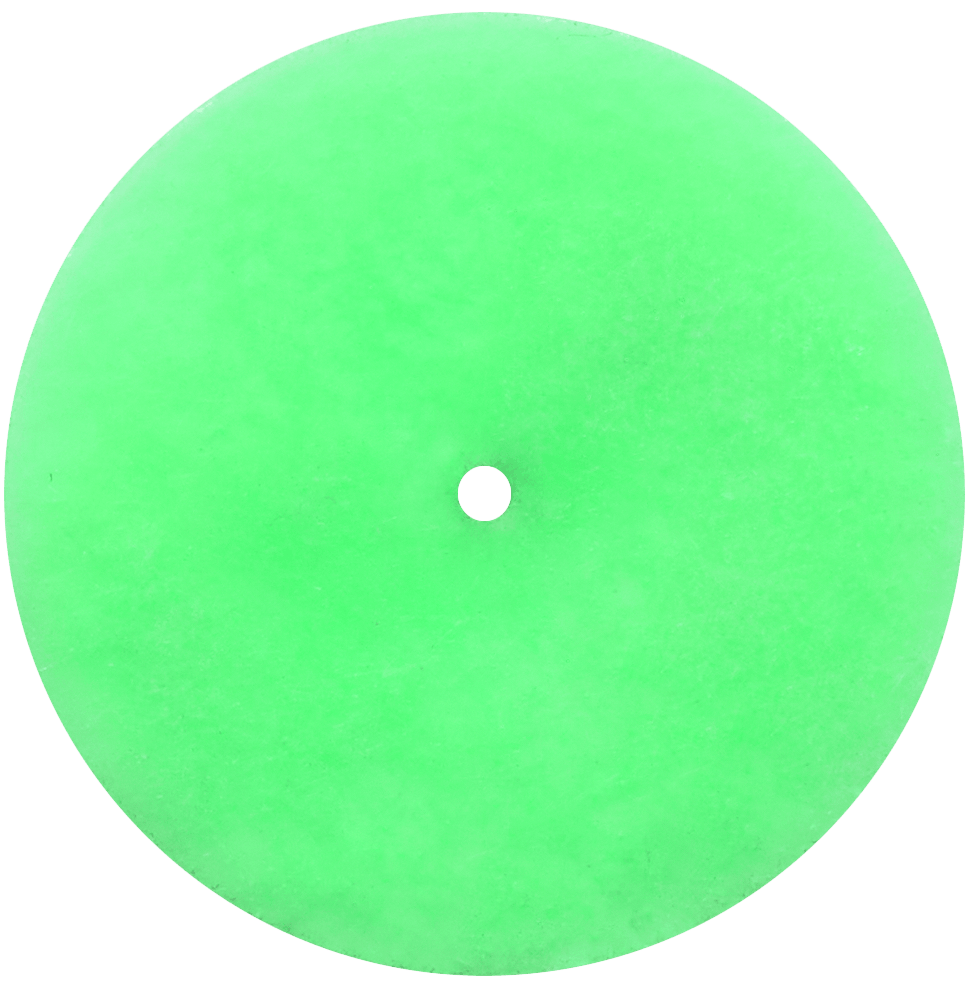

UFIBER radial ceramic fiber disc grit #150, green — **#150**GreenHeavy burr removalLarger burrs, higher material removal and heavier machining marks.

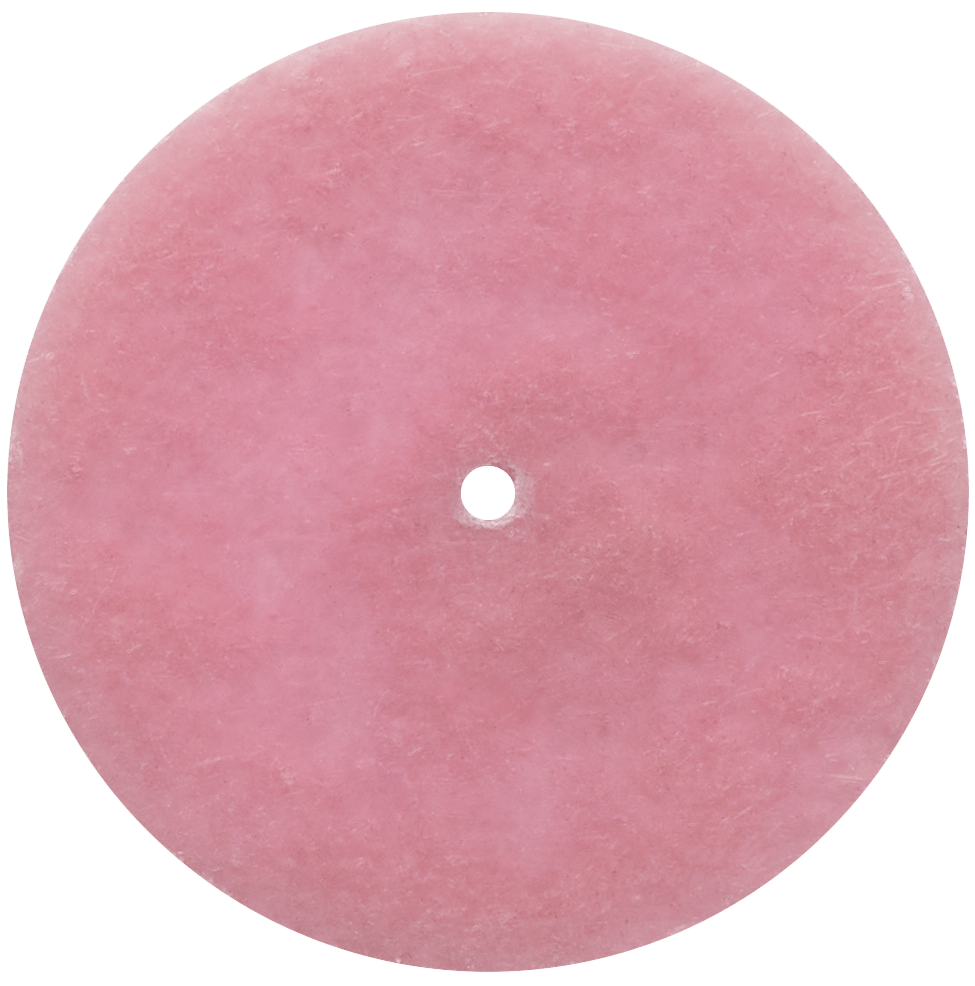

UFIBER radial ceramic fiber disc grit #200, pink — **#200**PinkCoarse finishingStronger burr removal, heavier surface marks and initial grinding before finer steps.

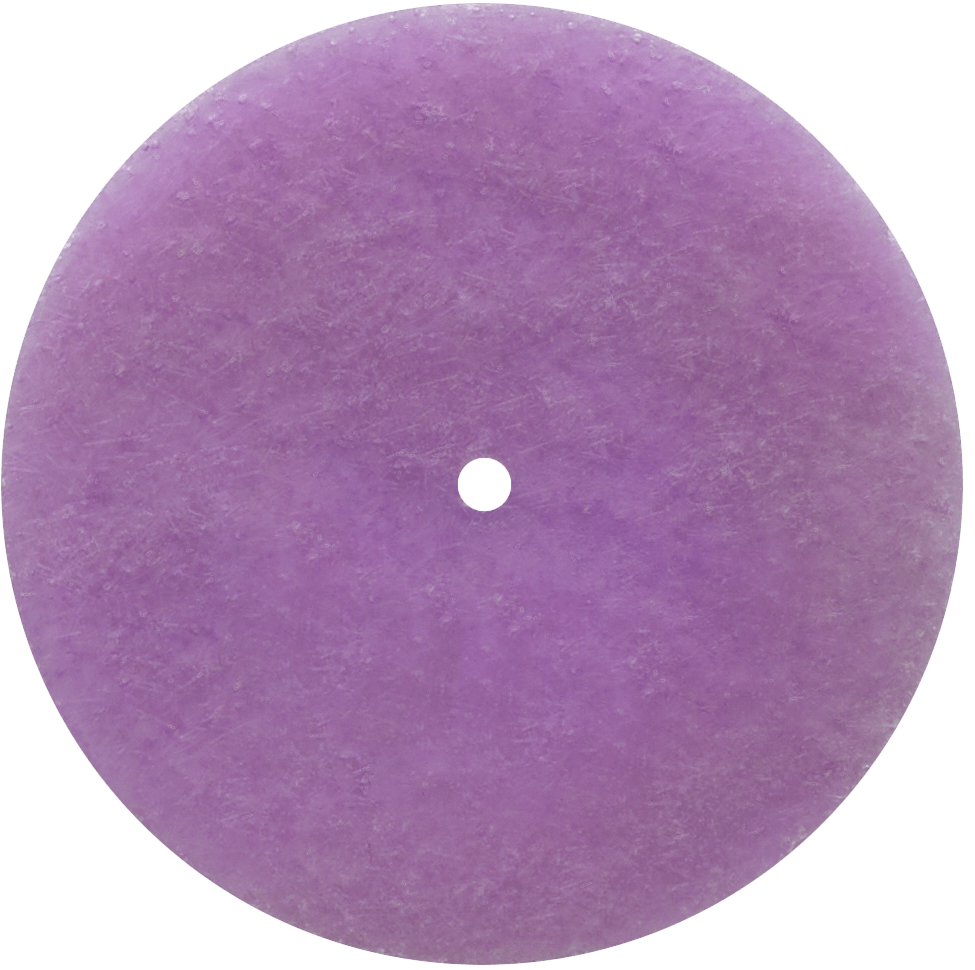

UFIBER radial ceramic fiber disc grit #400, violet — **#400**VioletCoarse finishingRemoves light machining marks and prepares the surface for finer finishing.

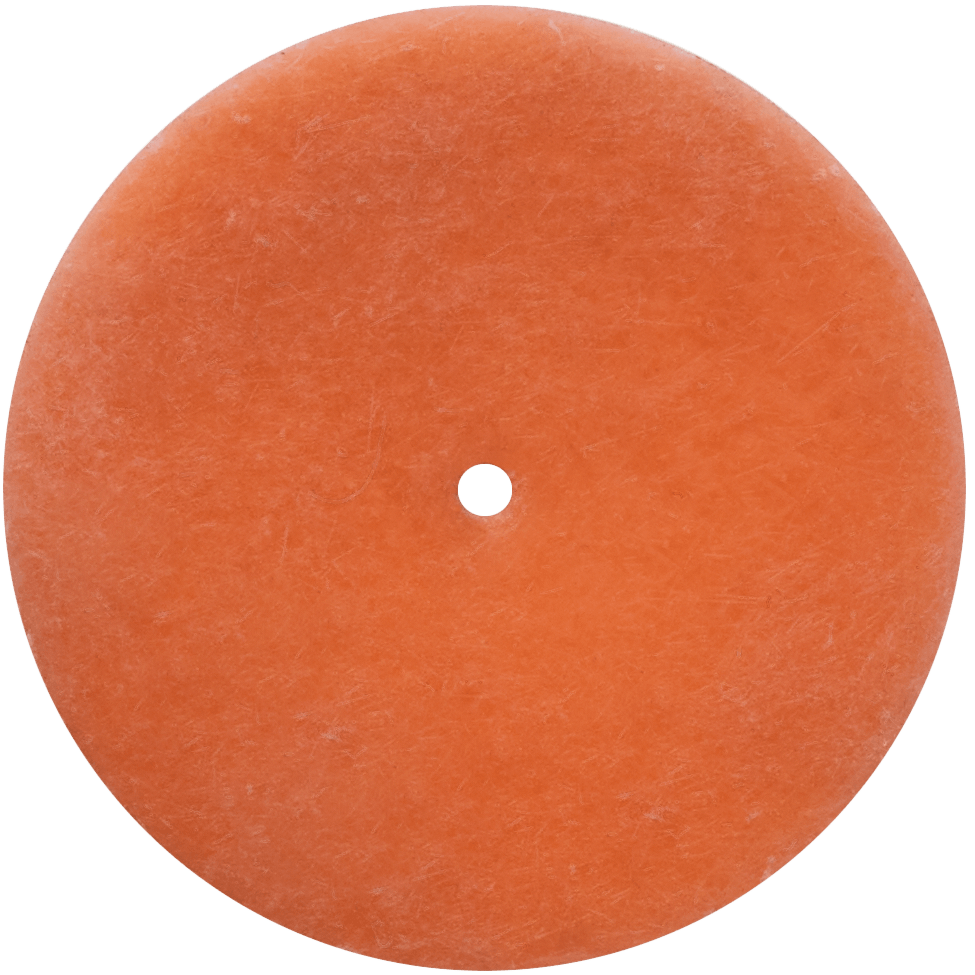

UFIBER radial ceramic fiber disc grit #600, orange — **#600**OrangeFine finishingControlled smoothing after deburring or grinding, before polishing.

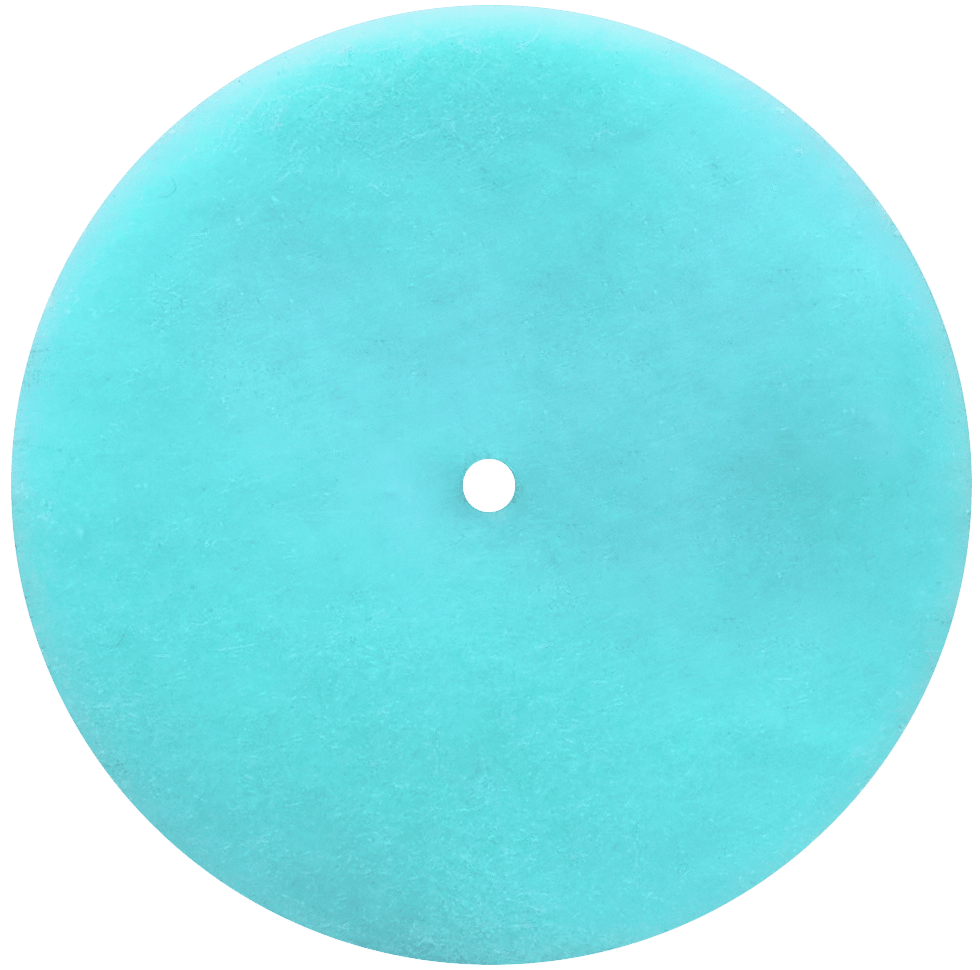

UFIBER radial ceramic fiber disc grit #800, blue — **#800**BlueFine polishingA good starting grit for fine surface polishing.

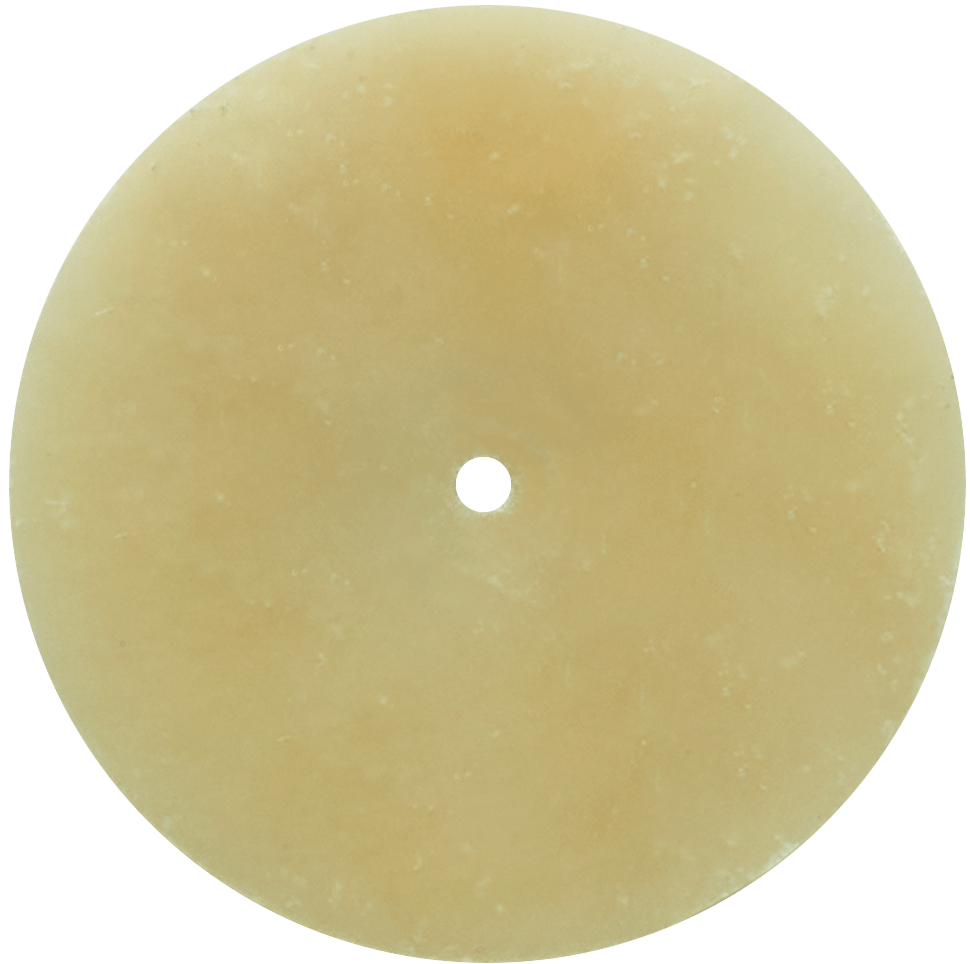

UFIBER radial ceramic fiber disc grit #1000, white — **#1000**WhiteUltra-fine polishingFinal polishing once the surface is prepared with a coarser grit.

Technical Specifications

Disc thickness: 0.8 mm / 0.0315″
Center hole: Ø1.6 mm / 0.063″
Diameters Ød: Ø13 · 19 · 22 · 25 · 30 mm
Grits: #150 · #200 · #400 · #600 · #800 · #1000
Maximum speed: 9,000 RPM
Recommended speed: 6,000–8,000 RPM
Drive: Electric spindle or rotary tool · CNC · Robot · Portable E-Pack
Not for: Pneumatic (air) tools

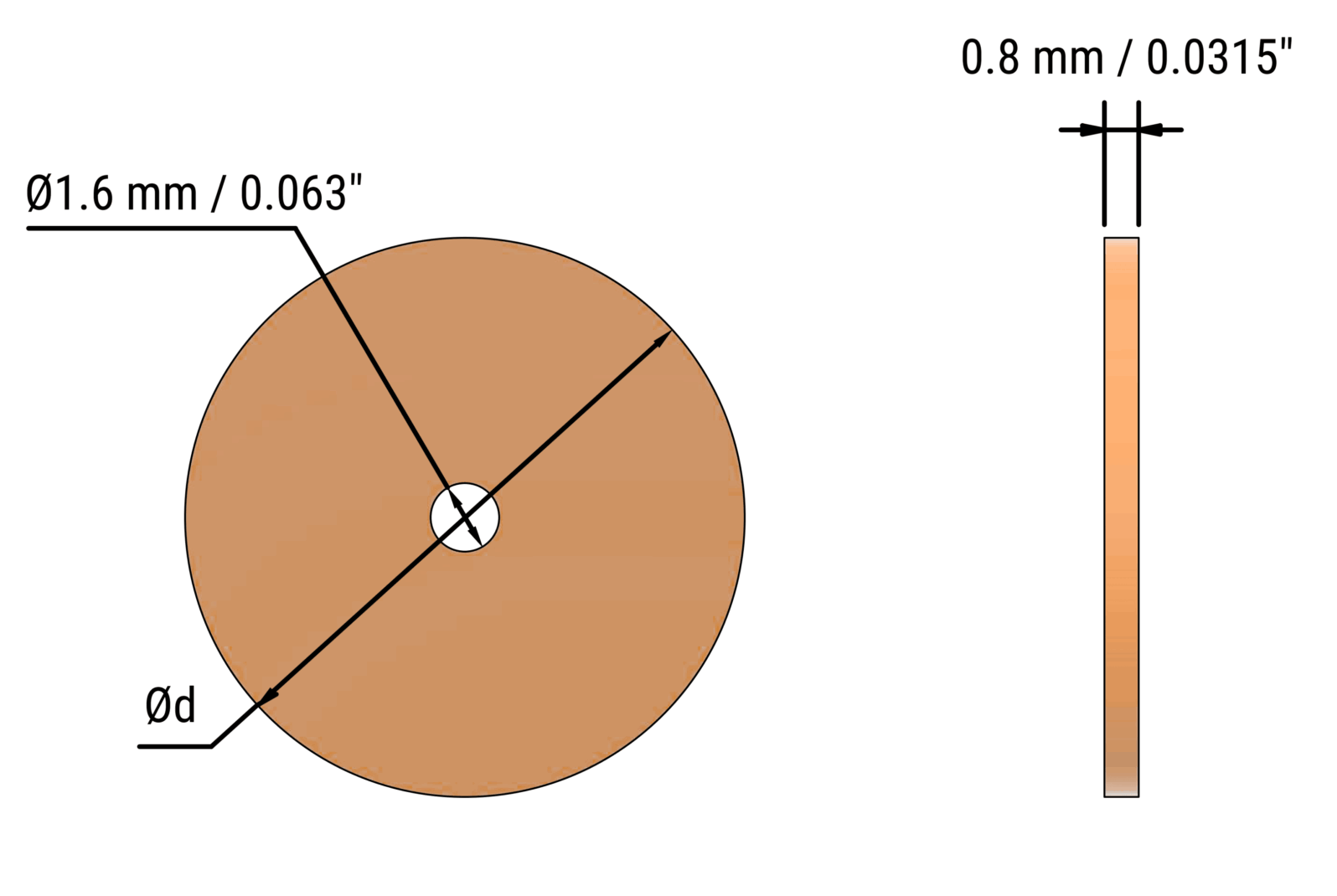

UFIBER Radial Ceramic Fiber Disc dimensional drawing: Ød, 0.8 mm thickness, Ø1.6 mm center hole — Dimensional drawing

Product Range

30 discs in five diameters and six grits — all 0.8 mm / 0.0315″ thick, max. 9,000 RPM. Description format UF-GD-[color]-D[Ø]-L008.

SKU	Description	Grit	Ødmm / inch	Max. spindle speedmin⁻¹ (RPM)
UF7113	UF-GD-G-D013-L008	150Green	Ø13mm / 0.512″	9,000RPM max.
UF7213	UF-GD-P-D013-L008	200Pink
UF7313	UF-GD-V-D013-L008	400Violet
UF7413	UF-GD-O-D013-L008	600Orange
UF7513	UF-GD-B-D013-L008	800Blue
UF7613	UF-GD-W-D013-L008	1000White
UF7119	UF-GD-G-D019-L008	150Green	Ø19mm / 0.748″	9,000RPM max.
UF7219	UF-GD-P-D019-L008	200Pink
UF7319	UF-GD-V-D019-L008	400Violet
UF7419	UF-GD-O-D019-L008	600Orange
UF7519	UF-GD-B-D019-L008	800Blue
UF7619	UF-GD-W-D019-L008	1000White
UF7122	UF-GD-G-D022-L008	150Green	Ø22mm / 0.866″	9,000RPM max.
UF7222	UF-GD-P-D022-L008	200Pink
UF7322	UF-GD-V-D022-L008	400Violet
UF7422	UF-GD-O-D022-L008	600Orange
UF7522	UF-GD-B-D022-L008	800Blue
UF7622	UF-GD-W-D022-L008	1000White
UF7125	UF-GD-G-D025-L008	150Green	Ø25mm / 0.984″	9,000RPM max.
UF7225	UF-GD-P-D025-L008	200Pink
UF7325	UF-GD-V-D025-L008	400Violet
UF7425	UF-GD-O-D025-L008	600Orange
UF7525	UF-GD-B-D025-L008	800Blue
UF7625	UF-GD-W-D025-L008	1000White
UF7130	UF-GD-G-D030-L008	150Green	Ø30mm / 1.181″	9,000RPM max.
UF7230	UF-GD-P-D030-L008	200Pink
UF7330	UF-GD-V-D030-L008	400Violet
UF7430	UF-GD-O-D030-L008	600Orange
UF7530	UF-GD-B-D030-L008	800Blue
UF7630	UF-GD-W-D030-L008	1000White

Quick SKU finder — grit × diameter

Grit	Ø13 mm0.512″	Ø19 mm0.748″	Ø22 mm0.866″	Ø25 mm0.984″	Ø30 mm1.181″
#150Green	UF7113	UF7119	UF7122	UF7125	UF7130
#200Pink	UF7213	UF7219	UF7222	UF7225	UF7230
#400Violet	UF7313	UF7319	UF7322	UF7325	UF7330
#600Orange	UF7413	UF7419	UF7422	UF7425	UF7430
#800Blue	UF7513	UF7519	UF7522	UF7525	UF7530
#1000White	UF7613	UF7619	UF7622	UF7625	UF7630

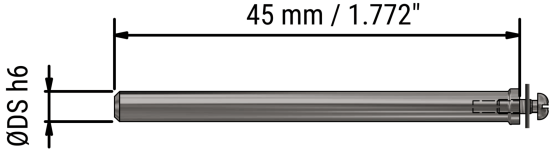

UFIBER disc clamping shank drawing, ØDS h6, length 45 mm

Disc Clamping Shanks

Every disc mounts on a clamping shank. Choose the shank diameter to fit your spindle collet or E-Pack handpiece.

SKU	Description	ØDS h6	Length
UF7023	UF-DA-016-C023-L45	Ø2.35 / 0.093″	45 / 1.772″
UF7030	UF-DA-016-C030-L45	Ø3.0 / 0.118″	45 / 1.772″

Spare parts (both shanks): clamping screw M1.6 × 0.35 mm · washer O.D. Ø5.0 × I.D. Ø1.61 × H 0.48 mm (O.D. Ø0.197″ × I.D. Ø0.063″ × H 0.019″).

Machining Recommendations

Starting parameters for CNC and robotic deburring, grinding, finishing and polishing. Use the lower value first and optimize on the actual component.

Workpiece material			Deburring / grinding				Finishing / polishing				Coolant
ISO	Material group	Condition	Vcm/min	Feedmm/min	Engagementmm	UFIBER grit	Vcm/min	Feedmm/min	Engagementmm	UFIBER grit	Recommendedmethod
P	Non-Alloyed & Alloy Steels	Annealed	150–250	200–500	0.05–0.15	#150#200#400	100–180	200–450	0.02–0.08	#600#800#1000	Air / Wet
P	Non-Alloyed & Alloy Steels	Quenched & Tempered	100–180	150–400	0.04–0.12	#150#200#400	80–150	150–350	0.02–0.06	#600#800#1000	Wet preferred
M	Stainless Steel	Austenitic	100–180	150–400	0.04–0.12	#200#400	80–150	150–350	0.02–0.06	#600#800#1000	Wet recommended
M	Stainless Steel	Ferritic / Martensitic	100–180	150–400	0.04–0.12	#200#400	80–150	150–350	0.02–0.06	#600#800#1000	Wet recommended
K	Grey Cast Iron	—	180–300	250–600	0.05–0.15	#150#200#400	120–200	200–500	0.02–0.08	#600#800	Air preferred
K	Nodular Cast Iron	—	150–250	200–500	0.05–0.15	#150#200#400	100–180	200–450	0.02–0.08	#600#800	Air preferred
N	Aluminum Wrought Alloys	Non-Hardenable	250–400	300–800	0.03–0.10	#400#600	180–300	300–700	0.01–0.05	#800#1000	Wet / MQL
	Aluminum Alloys	Hardenable	200–350	250–700	0.03–0.10	#400#600	150–250	250–600	0.01–0.05	#800#1000	Wet / MQL
	Copper Alloys	Brass / Bronze	200–350	250–700	0.03–0.10	#400#600	150–250	250–600	0.01–0.05	#800#1000	Wet / MQL
S	Heat-Resistant Alloys	Annealed	60–120	100–300	0.03–0.10	#150#200#400	50–100	100–250	0.01–0.05	#600#800#1000	Wet recommended
	Heat-Resistant Alloys	Hardened	50–100	100–250	0.03–0.08	#150#200#400	40–80	100–200	0.01–0.04	#600#800#1000	Wet recommended
	Titanium Alloys	—	60–120	100–300	0.03–0.10	#150#200#400	50–100	100–250	0.01–0.05	#600#800#1000	Wet recommended
H	Hardened Steel	45–55 HRC	50–120	100–300	0.03–0.10	#150#200#400	50–100	100–250	0.01–0.05	#600#800#1000	Wet preferred
H	Hardened Steel	>55 HRC	40–100	100–250	0.02–0.08	#150#200#400	40–80	100–200	0.01–0.04	#600#800#1000	Wet preferred

Important. These are NOGA MT starting recommendations for process development. Actual parameters depend on workpiece material, burr size, selected grit, disc diameter, contact geometry, machine rigidity and required surface finish. For CNC and robotic use, start at the lower end of each range and optimize gradually after confirming stable contact and acceptable disc wear.

Never exceed 9,000 RPM. High cutting speeds on small discs can pass the limit — 400 m/min on a Ø13 mm disc needs about 9,800 RPM. Check every setting with the calculator below and cap the spindle at 9,000 RPM.

Spindle Speed Calculator

Calculate the spindle speed for your cutting speed and disc diameter. The result is checked against the 9,000 RPM disc limit.

Metric

n(rpm)=1000 × V_cπ × D

V_c = cutting speed in m/min · D = diameter in mm

Imperial

n(rpm)=12 × V_cπ × D

V_c = cutting speed in SFM · D = diameter in inches

Cutting speed V_c

m/min

Disc diameter D

Calculated spindle speed

0RPM

Enter the cutting speed and disc diameter.

Typical Applications

Use the disc where a conventional rotary abrasive is too wide, or where precise, controlled contact is required.

Radial deburring & edge finishing

Burr removal and controlled edge refinement in narrow, hard-to-reach features.

Narrow grooves & slots

The 0.8 mm profile reaches rib bottoms, slots and narrow grooves.

Rib bottoms & side walls

Precision radial finishing of rib bottoms, side walls and confined geometries.

Internal & external profiles

Controlled deburring, grinding and polishing along profiles.

Local grinding & polishing

From removing machining marks to fine surface polishing.

CNC & robotic finishing

Repeatable automated finishing with an electric spindle or robotic end-effector.

How to select your disc

DiameterØ13–Ø30 mm, by access, contact area and tool clearance. Smaller discs reach tighter spaces; larger discs give more contact and lower RPM for the same Vc.
GritStart coarse (#150–#400) for burrs and machining marks, then finish with #600–#1000.
Shank & driveUF7023 (Ø2.35 mm) or UF7030 (Ø3 mm) on an electric spindle, robot end-effector or the Portable E-Pack — at or below 9,000 RPM.

3D Models

STEP models of the ceramic discs on the 3 mm / 0.118″ clamping shank, for CAM and robot cell programming.

Download 3D models (ZIP) ↓

Safety & precautions

Safe Use of the Radial Ceramic Fiber Disc

Read these instructions before use. Abrasive grinding and polishing dust can damage CNC machine components, and disc breakage or fragments may cause serious personal injury. Always follow the machine, spindle, toolholder and workplace safety instructions.

Warning — disc breakage can eject fragments

Use appropriate machine guarding or a closed machine enclosure. Always wear suitable eye and face protection, and inspect the disc and mounting components before every use.

Max. 9,000 RPMRecommended operating speed 6,000–8,000 RPM

Do not use with air toolsUse only a rigid, correctly guarded electric spindle or rotary tool.

1. Before use

Inspect the ceramic fiber disc, adapter, clamping screw and washer before every use.
Do not use cracked, chipped, loose, deformed or otherwise damaged components.
Confirm the disc is securely mounted and runs true before contacting the workpiece.
Never exceed the lowest rated speed of the disc, holder, adapter, spindle or machine.
Maximum permitted disc speed is 9,000 RPM.

2. During operation

Keep machine guards or the machine enclosure closed whenever possible.
Verify smooth rotation before contacting the workpiece.
Use light, controlled contact. Do not force, jam or excessively side-load the disc.
Keep hands, hair, jewelry and loose clothing away from rotating components.
Stop the spindle completely before touching, adjusting or replacing the disc.

3. Abrasive dust & CNC protection

Grinding and polishing generate abrasive powder that may enter CNC guideways, bearings, seals and other precision components.
Abrasive dust may cause accelerated wear or damage to machine components.
Use effective local dust extraction or a dust collector, especially during dry processing.
Keep the machine enclosure, spindle area, tool changer, guideways and surrounding equipment clean.
Do not let grinding powder or abrasive dust accumulate inside the machine.
Do not use compressed air in a way that drives abrasive dust deeper into machine components.

4. PPE & disc dressing

Wear safety glasses with side protection.
Use a face shield and respiratory protection when required by the process, dust level or workplace risk assessment.
Wear suitable protective clothing and follow your workplace PPE requirements.
Dress or reshape the disc only with a suitable diamond dressing tool and controlled contact.
After dressing, inspect the disc again and verify secure mounting and true running before restarting.

Stop use immediately

Stop the machine if the disc is damaged, runs out of true, vibrates, overheats or produces unusual noise. Replace damaged components before restarting.

These instructions supplement, and do not replace, the machine manufacturer's instructions, spindle and toolholder instructions and applicable workplace safety requirements. NOGA MT · UFIBER® Radial Ceramic Fiber Disc.

Frequently Asked Questions

What is the UFIBER® Radial Ceramic Fiber Disc?

An ultra-thin 0.8 mm / 0.0315″ ceramic-fiber abrasive disc that cuts with its outer edge. It is used for precision deburring, edge finishing, grinding and polishing of grooves, slots, rib bottoms, side walls and other narrow features.

Which disc diameters are available?

Five diameters: Ø13 mm (0.512″), Ø19 mm (0.748″), Ø22 mm (0.866″), Ø25 mm (0.984″) and Ø30 mm (1.181″).

Which grit sizes are available?

Six color-coded grits: #150 green, #200 pink, #400 violet, #600 orange, #800 blue and #1000 white — from heavy burr removal to ultra-fine polishing.

What is the maximum speed?

The maximum speed is 9,000 RPM; 6,000–8,000 RPM is recommended. Never exceed the lowest rated speed of the disc, shank, spindle or machine.

Which rotary tool should I use?

Use a suitable, rigid electric rotary tool or spindle — or the UF9999 Portable E-Pack. Pneumatic (air) tools are not recommended for this disc.

Can the disc be used on CNC machines and robots?

Yes. Mount it in a compatible electric spindle or rotary end-effector with secure tool holding, controlled speed and a programmed toolpath. Start at the lower end of the machining recommendations and optimize on the actual part.

How is the disc mounted?

On a UF7023 (Ø2.35 mm) or UF7030 (Ø3 mm) disc clamping shank with an M1.6 × 0.35 mm clamping screw and washer. Confirm the disc runs true before contacting the workpiece.

Can the disc be dressed or reshaped?

Yes, but only with a suitable diamond dressing tool and light, controlled contact. Inspect the disc and mounting again after dressing and check that it runs true before restarting.

More UFIBER® Tools

Portable E-Pack UF9999Portable drive for discs, End & Point brushes and diamond stones.View E-Pack → Ceramic Diamond StonesDiamond finishing for carbide, hardened steel, ceramics and EDM scale.View stones → Ceramic Fiber BrushesSurface, cross-hole, end and point brushes, #150–#6000.View brushes → All UFIBER ToolsCompare brushes, radial discs and diamond stones.UFIBER overview →

Need help selecting the right disc?

Send us the workpiece material, burr condition, required finish, available access and machine details — including the CNC spindle or robot end-effector.
