UFIBER® Ceramic Fiber Brushes

Ceramic fiber brushes for controlled deburring, polishing and finishing of edges, surfaces, cross-holes, ends and small features — on CNC machines, machining centers, robots and portable drives.

CHOOSE YOUR BRUSHSIZES & SKUsALL UFIBER TOOLS
Four Brush GeometriesSurface, Cross-Hole, End-Type and Point-Type — Ø1 to Ø100 mm.
10 Grits, #150–#6000From aggressive deburring to fine polishing and micro-finishing.
Automation ReadyCNC machines, machining centers and robots; End & Point also on the Portable E-Pack.

Choose the Right UFIBER® Brush

Pick the geometry you need to reach, then choose the grit by burr size, material and required finish.

Surface BrushSURFACE / EDGE

Surface Brush

Controlled deburring, edge finishing and polishing on flat surfaces and broad geometries.

Flat surfacesEdgesLarge areas
VIEW SIZES & SKUs →
Cross-Hole BrushINTERNAL / CROSS-HOLE

Cross-Hole Brush

Controlled deburring and finishing of internal bores and intersecting cross-hole edges.

Cross-holesInternal boresIntersections
VIEW SIZES & SKUs →

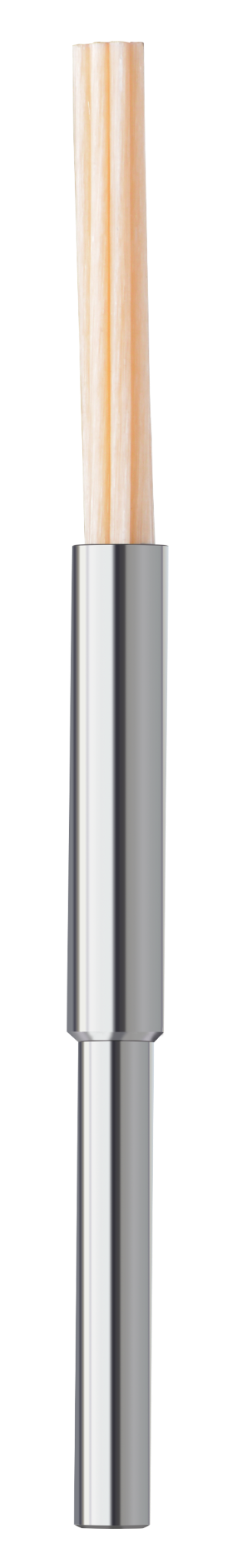

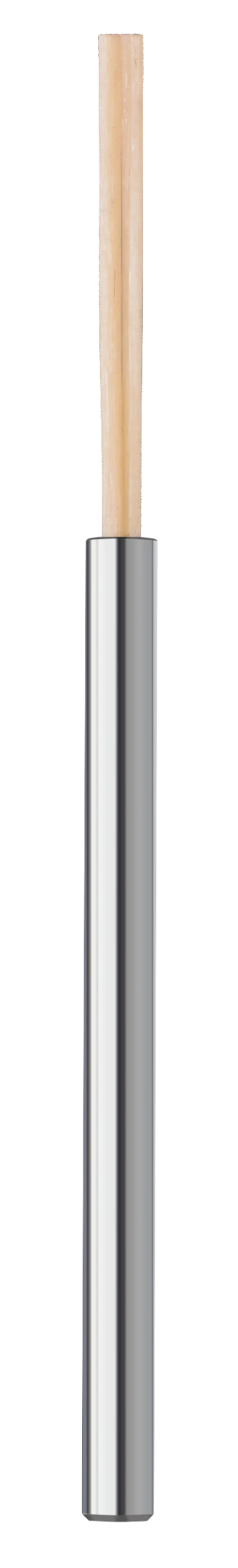

Point-Type BrushSMALL / LOCALIZED

Point-Type Brush

Precision finishing and polishing in small, narrow or complex application areas.

Small featuresNarrow areasPrecision finish
VIEW SIZES & SKUs →
End-Type BrushEND / RECESSED AREA

End-Type Brush

Localized deburring and polishing on flat ends, corners, recesses and difficult-to-access geometries.

CornersRecesses45° access
VIEW SIZES & SKUs →

Ceramic Fiber Brush Product Range

Select a brush type. Each size opens to show specifications, grit, SKU and description; mounting accessories are listed with the Surface Brush.

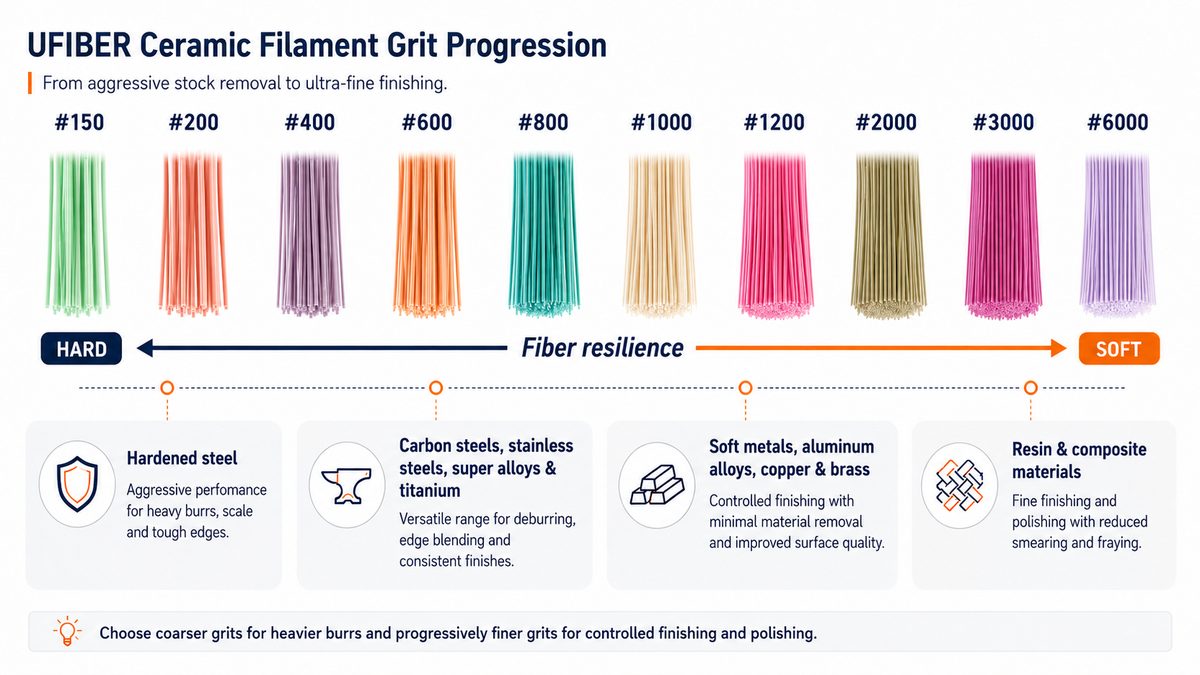

Brush grit & color guide · #150–#6000 +UFIBER ceramic fiber brush grit progression from #150 to #6000
Surface Brush

Surface Brush Product Range

Dimensional drawing and complete Surface Brush range grouped by brush diameter. The repeated dimensional data is shown once per size, keeping the SKU table compact and easier to read.

Ø6–Ø100 mm#150–#600060 SKUsShank / Sleeve Mounting

Use on: Machining center · Lathe (with milling) · Lathe (without milling) · Dedicated machine · RobotNot recommended: Rotary tool (electric), Rotary tool (air)

Technical Guidelines →
DIMENSIONAL DRAWINGUFIBER Surface Brush dimensional drawing with Ød, L, L2 and shank dimensions
REAL PRODUCT VIEW

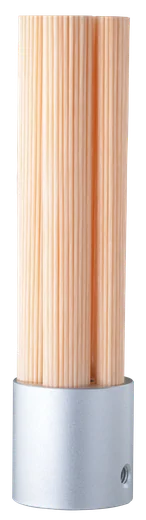

UFIBER Representative Surface Brush — UF1425
Representative Surface Brush
SIZEØ6 / 0.236″Surface Brush
+
L30 / 1.181″
L242.5 / 1.673″
ØDSN/A
Weight3 g
Recommended RPM9000–12000
Max Feed2000 mm/min / 79 in/min
Max Projection10 / 0.394″
DOC Polishing0.2 mm / 0.008″
DOC Deburring0.5 mm / 0.02″
DOC Maximum1.2 mm / 0.05″
Spare PartsN/A
GritSKUDescription
#150UF1106UF-FB-G-D006-L30
#200UF1206UF-FB-P-D006-L30
#400UF1306UF-FB-V-D006-L30
#600UF1406UF-FB-O-D006-L30
#800UF1506UF-FB-B-D006-L30
#1000UF1606UF-FB-W-D006-L30
#1200UF1706UF-FB-R-D006-L30
#2000UF1806UF-FB-M-D006-L30
#3000UF1906UF-FB-Z-D006-L30
#6000UF1006UF-FB-A-D006-L30
SIZEØ15 / 0.590″Surface Brush
+
L50 / 1.969″
L265 / 2.560″
ØDSØ6 / 0.236″
Weight7 g
Recommended RPM5700–7200
Max Feed2000 mm/min / 79 in/min
Max Projection10 / 0.394″
DOC Polishing0.2 mm / 0.008″
DOC Deburring0.5 mm / 0.02″
DOC Maximum1.2 mm / 0.05″
Spare PartsM3×0.5×4 • UF0019 • Key 1.5 • DH0005
GritSKUDescription
#150UF1115UF-FB-G-D015-L50
#200UF1215UF-FB-P-D015-L50
#400UF1315UF-FB-V-D015-L50
#600UF1415UF-FB-O-D015-L50
#800UF1515UF-FB-B-D015-L50
#1000UF1615UF-FB-W-D015-L50
#1200UF1715UF-FB-R-D015-L50
#2000UF1815UF-FB-M-D015-L50
#3000UF1915UF-FB-Z-D015-L50
#6000UF1015UF-FB-A-D015-L50
SIZEØ25 / 0.984″Surface Brush
+
L75 / 2.952″
L2100 / 3.937″
ØDSØ9 / 0.354″
Weight21 g
Recommended RPM5000–6000
Max Feed2000 mm/min / 79 in/min
Max Projection10 / 0.394″
DOC Polishing0.2 mm / 0.008″
DOC Deburring0.5 mm / 0.02″
DOC Maximum1.2 mm / 0.05″
Spare PartsM4×0.7×8 • UF0018 • Key 2 • UF0020
GritSKUDescription
#150UF1125UF-FB-G-D025-L75
#200UF1225UF-FB-P-D025-L75
#400UF1325UF-FB-V-D025-L75
#600UF1425UF-FB-O-D025-L75
#800UF1525UF-FB-B-D025-L75
#1000UF1625UF-FB-W-D025-L75
#1200UF1725UF-FB-R-D025-L75
#2000UF1825UF-FB-M-D025-L75
#3000UF1925UF-FB-Z-D025-L75
#6000UF1025UF-FB-A-D025-L75
SIZEØ40 / 1.575″Surface Brush
+
L75 / 2.952″
L296 / 3.780″
ØDSØ12 / 0.472″
Weight26 g
Recommended RPM2700–3600
Max Feed2000 mm/min / 79 in/min
Max Projection10 / 0.394″
DOC Polishing0.2 mm / 0.008″
DOC Deburring0.5 mm / 0.02″
DOC Maximum1.2 mm / 0.05″
Spare PartsM6×1.0×8 • PC0044 • Key 3 • DB0007
GritSKUDescription
#150UF1140UF-FB-G-D040-L75
#200UF1240UF-FB-P-D040-L75
#400UF1340UF-FB-V-D040-L75
#600UF1440UF-FB-O-D040-L75
#800UF1540UF-FB-B-D040-L75
#1000UF1640UF-FB-W-D040-L75
#1200UF1740UF-FB-R-D040-L75
#2000UF1840UF-FB-M-D040-L75
#3000UF1940UF-FB-Z-D040-L75
#6000UF1040UF-FB-A-D040-L75
SIZEØ60 / 2.362″Surface Brush
+
L75 / 2.952″
L296 / 3.780″
ØDSØ13 / 0.512″
Weight70 g
Recommended RPM1800–2400
Max Feed2000 mm/min / 79 in/min
Max Projection10 / 0.394″
DOC Polishing0.2 mm / 0.008″
DOC Deburring0.5 mm / 0.02″
DOC Maximum1.2 mm / 0.05″
Spare PartsM6×1.0×20 • UF0016 • Key 3 • DB0007
GritSKUDescription
#150UF1160UF-FB-G-D060-L75
#200UF1260UF-FB-P-D060-L75
#400UF1360UF-FB-V-D060-L75
#600UF1460UF-FB-O-D060-L75
#800UF1560UF-FB-B-D060-L75
#1000UF1660UF-FB-W-D060-L75
#1200UF1760UF-FB-R-D060-L75
#2000UF1860UF-FB-M-D060-L75
#3000UF1960UF-FB-Z-D060-L75
#6000UF1060UF-FB-A-D060-L75
SIZEØ100 / 3.937″Surface Brush
+
L75 / 2.952″
L297 / 3.820″
ØDSØ16 / 0.630″
Weight140 g
Recommended RPM1000–1400
Max Feed2000 mm/min / 79 in/min
Max Projection10 / 0.394″
DOC Polishing0.2 mm / 0.008″
DOC Deburring0.5 mm / 0.02″
DOC Maximum1.2 mm / 0.05″
Spare PartsM6×1.0×25 • UF0015 • Key 3 • DB0007
GritSKUDescription
#150UF1100UF-FB-G-D100-L75
#200UF1200UF-FB-P-D100-L75
#400UF1300UF-FB-V-D100-L75
#600UF1400UF-FB-O-D100-L75
#800UF1500UF-FB-B-D100-L75
#1000UF1600UF-FB-W-D100-L75
#1200UF1700UF-FB-R-D100-L75
#2000UF1800UF-FB-M-D100-L75
#3000UF1900UF-FB-Z-D100-L75
#6000UF1000UF-FB-A-D100-L75
MOUNTING ACCESSORYSurface Brush Sleeves6 SKUs+
Original NOGA UFIBER Surface Brush Sleeve dimensional drawing

Sleeve Item List & Spare Parts

Download Sleeve STEP Models →
Suitable BrushSKUDescriptionØd1 ExternalØDSL1L2WeightClamping ScrewScrew SKULN Key SKey SKU
Ø6 / 0.236″UF5506UF-FS-6-C06-L7010 / 0.394″Ø6 / 0.236″30 / 1.181″71 / 2.795″30 gM3×0.5×4UF00102.5UF0021
Ø15 / 0.590″UF5515UF-FS-15-C06-L9018.5 / 0.728″Ø6 / 0.236″30 / 1.181″92 / 3.622″40 gM3×0.5×6UF00112UF0020
Ø25 / 0.984″UF5525UF-FS-25-C10-L14030 / 1.181″Ø10 / 0.394″30 / 1.181″149 / 5.866″160 gM4×0.7×10UF00122.5UF0021
Ø40 / 1.575″UF5540UF-FS-40-C12-L14045 / 1.772″Ø12 / 0.472″30 / 1.181″135 / 5.315″200 gM6×1.0×10UF00134UF0022
Ø60 / 2.362″UF5560UF-FS-60-C12-L14567 / 2.638″Ø12 / 0.472″40 / 1.575″145 / 5.708″320 gM6×1.0×10UF00134UF0022
Ø100 / 3.937″UF5500UF-FS-100-C16-L155110 / 4.330″Ø16 / 0.630″40 / 1.575″155 / 6.102″670 gM8×1.25×16UF00145UF0023
MOUNTING ACCESSORYSurface Brush Shanks8 SKUs+
Original NOGA UFIBER Surface Brush shanks dimensional drawing

Surface Brush Shanks Item List

Download Shank STEP Models →
Suitable BrushSKUDescriptionØDSL1L2ØC
Ø15 / 0.590″UF5001UF S-L045-DS06-C066 / 0.236″30 / 1.181″45 / 1.772″6 / 0.236″
Ø25 / 0.984″UF5002UF S-L050-DS09-C069 / 0.354″50 / 1.968″50 / 1.969″6 / 0.236″
Ø25 / 0.984″UF5003UF S-L050-DS09-C109 / 0.354″50 / 1.968″50 / 1.969″10 / 0.398″
Ø25 / 0.984″UF5007UF-S-L120-DS09-C109 / 0.354″120 / 4.724″120 / 4.724″10 / 0.398″
Ø40 / 1.575″UF5004UF S-L050-DS12-C1212 / 0.472″50 / 1.968″50 / 1.969″12 / 0.472″
Ø40 / 1.575″UF5008UF-S-L120-DS12-C1212 / 0.472″120 / 4.724″120 / 4.724″12 / 0.472″
Ø60 / 2.362″UF5005UF S-L050-DS13-C1213 / 0.512″50 / 1.968″50 / 1.969″12 / 0.472″
Ø100 / 3.937″UF5006UF S-L050-DS16-C1616 / 0.630″50 / 1.968″50 / 1.969″16 / 0.630″

L2 is defined by the L-value in the product description (for example, UF S-L045-DS06-C06 = L2 45 mm).

AUTOMATION ACCESSORY

Floating Dampers

Surface Brushes can also be used with UFIBER Floating Dampers to provide controlled compliance in CNC machines and robotic finishing applications.

VIEW FLOATING DAMPERS →
(1) Surface brush connection (without sleeve). (2) Chuck connection (machine side). Surface Brush sleeves and shanks are sold separately where applicable.
Cross-Hole Brush

Cross-Hole Brush Product Range

The Cross-Hole drawing remains beside the range, while each diameter group clearly separates the dimensional data and the two pilot-hole ranges used for coarse and fine grit groups.

Ø1.5–Ø11 mm#150–#600043 SKUsUp to 20,000 RPM

Use on: Machining center · Dedicated machine · RobotNot recommended: Lathe (with milling), Lathe (without milling), Rotary tool (electric), Rotary tool (air)

Technical Guidelines →
DIMENSIONAL DRAWINGUFIBER Cross-Hole Brush dimensional drawing with brush, stem and shank dimensions
REAL PRODUCT VIEW
UFIBER Representative Cross-Hole Brush
Representative Cross-Hole Brush
SIZEØ1.5 / 0.059″Cross-Hole Brush
+
L #150–#100050 mm
L #1200–#600050 mm
Ød2Ø2.5 / 0.098″
L2 #150–#1000120 / 4.72″
L2 #1200–#6000120 / 4.72″
ØDSØ3 / 0.118″
Weight3 g
Maximum RPM20000
Pilot #150–#10003.5–5 / 0.138–0.197″
Pilot #1200–#60003.5–5 / 0.138–0.197″
GritSKUDescription
#150UF2115UF-CH-G-D015-L50
#200UF2215UF-CH-P-D015-L50
#400UF2315UF-CH-V-D015-L50
#600UF2415UF-CH-O-D015-L50
#800UF2515UF-CH-B-D015-L50
#1000UF2615UF-CH-W-D015-L50
#1200UF2715UF-CH-R-D015-L50
#2000UF2815UF-CH-M-D015-L50
#3000UF2915UF-CH-Z-D015-L50
#6000UF2015UF-CH-A-D015-L50
SIZEØ3 / 0.118″Cross-Hole Brush
+
L #150–#100060 mm
L #1200–#600050 mm
Ød2Ø4 / 0.158″
L2 #150–#1000130 / 5.12″
L2 #1200–#6000120 / 4.72″
ØDSØ3 / 0.118″
Weight6 g
Maximum RPM14000
Pilot #150–#10005–7 / 0.197–0.276″
Pilot #1200–#60005–7 / 0.197–0.276″
GritSKUDescription
#150UF2130UF-CH-G-D030-L60
#200UF2230UF-CH-P-D030-L60
#400UF2330UF-CH-V-D030-L60
#600UF2430UF-CH-O-D030-L60
#800UF2530UF-CH-B-D030-L60
#1000UF2630UF-CH-W-D030-L60
#1200UF2730UF-CH-R-D030-L50
#2000UF2830UF-CH-M-D030-L50
#3000UF2930UF-CH-Z-D030-L50
#6000UF2030UF-CH-A-D030-L50
SIZEØ5 / 0.197″Cross-Hole Brush
+
L #150–#100060 mm
L #1200–#600050 mm
Ød2Ø6 / 0.236″
L2 #150–#1000130 / 5.12″
L2 #1200–#6000120 / 4.72″
ØDSØ6 / 0.236″
Weight17 g
Maximum RPM14000
Pilot #150–#10007–9 / 0.276–0.354″
Pilot #1200–#60008–10 / 0.315–0.394″
GritSKUDescription
#150UF2150UF-CH-G-D050-L60
#200UF2250UF-CH-P-D050-L60
#400UF2350UF-CH-V-D050-L60
#600UF2450UF-CH-O-D050-L60
#800UF2550UF-CH-B-D050-L60
#1000UF2650UF-CH-W-D050-L60
#1200UF2750UF-CH-R-D050-L50
#2000UF2850UF-CH-M-D050-L50
#3000UF2950UF-CH-Z-D050-L50
#6000UF2050UF-CH-A-D050-L50
SIZEØ7 / 0.276″Cross-Hole Brush
+
L #150–#100060 mm
L #1200–#600050 mm
Ød2Ø8 / 0.315″
L2 #150–#1000130 / 5.12″
L2 #1200–#6000120 / 4.72″
ØDSØ6 / 0.236″
Weight24 g
Maximum RPM14000
Pilot #150–#10009–14 / 0.354–0.551″
Pilot #1200–#600010–20 / 0.394–0.787″
GritSKUDescription
#150UF2170UF-CH-G-D070-L60
#200UF2270UF-CH-P-D070-L60
#400UF2370UF-CH-V-D070-L60
#600UF2470UF-CH-O-D070-L60
#800UF2570UF-CH-B-D070-L60
#1000UF2670UF-CH-W-D070-L60
#1200UF2770UF-CH-R-D070-L50
#2000UF2870UF-CH-M-D070-L50
#3000UF2970UF-CH-Z-D070-L50
#6000UF2070UF-CH-A-D070-L50
SIZEØ11 / 0.433″Cross-Hole Brush
+
L #150–#100060 mm
L #1200–#6000—
Ød2Ø12 / 0.472″
L2 #150–#1000180 / 7.480″
L2 #1200–#6000—
ØDSØ12 / 0.472″
Weight115 g
Maximum RPM14000
Pilot #150–#100014–20 / 0.551–0.787″
Pilot #1200–#6000—
GritSKUDescription
#600NEWUF2411UF-CH-O-D110-L60
#800NEWUF2511UF-CH-B-D110-L60
#1000NEWUF2611UF-CH-W-D110-L60
End-Type Brush

End-Type Brush Product Range

Both dimensional drawings are retained: straight End Brush and 45° End Brush. Each range has ten grit options with 3 g weight and 12,000 RPM maximum spindle speed.

Ø5 mmStraight + 45°20 SKUs12,000 RPM Max

Use on: Machining center · Lathe (with milling) · Lathe (without milling) · Dedicated machine · Robot · Rotary tool (electric) · Rotary tool (air)

Technical Guidelines →
STRAIGHTUFIBER straight End Brush dimensional drawing45° TYPEUFIBER 45 degree End Brush dimensional drawing
REAL PRODUCT VIEW
UFIBER Straight End-Type Brush — UF4450
Straight End-Type Brush

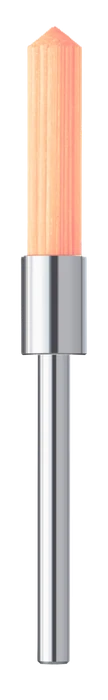

UFIBER 45° End-Type Brush
45° End-Type Brush
SIZEØ5 • StraightEnd-Type Brush
+
Weight3 g
Maximum RPM12000
TypeStraight End Brush
GritSKUDescription
#150UF4150UF-EB-G-D5-L20
#200UF4250UF-EB-P-D5-L20
#400UF4350UF-EB-V-D5-L20
#600UF4450UF-EB-O-D5-L20
#800UF4550UF-EB-B-D5-L20
#1000UF4650UF-EB-W-D5-L20
#1200UF4750UF-EB-R-D5-L20
#2000UF4850UF-EB-M-D5-L20
#3000UF4950UF-EB-Z-D5-L20
#6000UF4050UF-EB-A-D5-L20
SIZEØ5 • 45°End-Type Brush
+
Weight3 g
Maximum RPM12000
Type45° End Brush
GritSKUDescription
#150UF6150UF-EB45-G-D5-L20
#200UF6250UF-EB45-P-D5-L20
#400UF6350UF-EB45-V-D5-L20
#600UF6450UF-EB45-O-D5-L20
#800UF6550UF-EB45-B-D5-L20
#1000UF6650UF-EB45-W-D5-L20
#1200UF6750UF-EB45-R-D5-L20
#2000UF6850UF-EB45-M-D5-L20
#3000UF6950UF-EB45-Z-D5-L20
#6000UF6050UF-EB45-A-D5-L20
PORTABLE DRIVE SYSTEM

UF9999 Portable E-Pack

End-Type Brushes and Point-Type Brushes are compatible with the UF9999 Portable E-Pack for portable precision deburring, finishing and polishing applications.

VIEW UF9999 E-PACK →
Point-Type Brush

Point-Type Brush Product Range

The two dimensional drawings are preserved for the small-diameter and large-diameter point-brush groups. The product range is then grouped by Ød for faster SKU selection.

Ø1.0–Ø3.0 mm / Ø0.039–Ø0.118″#150–#600050 SKUs12,000 RPM Max

Use on: Machining center · Lathe (with milling) · Lathe (without milling) · Dedicated machine · Robot · Rotary tool (electric) · Rotary tool (air)

Technical Guidelines →

Representative Point-Type Brushes shown: 1.0–2.0 mm / 0.039–0.079″ range and 2.5–3.0 mm / 0.098–0.118″ range

Ø1.0–Ø2.0 mm / Ø0.039–Ø0.079″UFIBER Point Brush dimensional drawing for 1.0 to 2.0 mm brushesØ2.5–Ø3.0 mm / Ø0.098–Ø0.118″UFIBER Point Brush dimensional drawing for 2.5 to 3.0 mm brushes
REAL PRODUCT VIEW
Representative Point-Type Brush for the 1.0 to 2.0 mm / 0.039 to 0.079 inch range
Representative Point-Type Brush (1.0–2.0 mm / 0.039–0.079″ range)
Representative Point-Type Brush for the 2.5 to 3.0 mm / 0.098 to 0.118 inch range
Representative Point-Type Brush (2.5–3.0 mm / 0.098–0.118″ range)
SIZEØ1 / 0.039″Point-Type Brush
+
DiameterØ1 / 0.039″
Weight2 g
Maximum RPM12000
GritSKUDescription
#150UF3110UF-PB-G-D1-L20
#200UF3210UF-PB-P-D1-L20
#400UF3310UF-PB-V-D1-L20
#600UF3410UF-PB-O-D1-L20
#800UF3510UF-PB-B-D1-L20
#1000UF3610UF-PB-W-D1-L20
#1200UF3710UF-PB-R-D1-L20
#2000UF3810UF-PB-M-D1-L20
#3000UF3910UF-PB-Z-D1-L20
#6000UF3010UF-PB-A-D1-L20
SIZEØ1.5 / 0.059″Point-Type Brush
+
DiameterØ1.5 / 0.059″
Weight2 g
Maximum RPM12000
GritSKUDescription
#150UF3115UF-PB-G-D1.5-L20
#200UF3215UF-PB-P-D1.5-L20
#400UF3315UF-PB-V-D1.5-L20
#600UF3415UF-PB-O-D1.5-L20
#800UF3515UF-PB-B-D1.5-L20
#1000UF3615UF-PB-W-D1.5-L20
#1200UF3715UF-PB-R-D1.5-L20
#2000UF3815UF-PB-M-D1.5-L20
#3000UF3915UF-PB-Z-D1.5-L20
#6000UF3015UF-PB-A-D1.5-L20
SIZEØ2 / 0.079″Point-Type Brush
+
DiameterØ2 / 0.079″
Weight2 g
Maximum RPM12000
GritSKUDescription
#150UF3120UF-PB-G-D2-L20
#200UF3220UF-PB-P-D2-L20
#400UF3320UF-PB-V-D2-L20
#600UF3420UF-PB-O-D2–L20
#800UF3520UF-PB-B-D2–L20
#1000UF3620UF-PB-W-D2-L20
#1200UF3720UF-PB-R-D2-L20
#2000UF3820UF-PB-M-2-L20
#3000UF3920UF-PB-Z-D2-L20
#6000UF3020UF-PB-A-D2-L20
SIZEØ2.5 / 0.098″Point-Type Brush
+
DiameterØ2.5 / 0.098″
Weight3 g
Maximum RPM12000
GritSKUDescription
#150UF3125UF-PB-G-D2.5-L20
#200UF3225UF-PB-P-D2.5-L20
#400UF3325UF-PB-V-D2.5-L20
#600UF3425UF-PB-O-D2.5-L20
#800UF3525UF-PB-B-D2.5-L20
#1000UF3625UF-PB-W-D2.5-L20
#1200UF3725UF-PB-R-D2.5-L20
#2000UF3825UF-PB-M-D2.5-L20
#3000UF3925UF-PB-Z-D2.5-L20
#6000UF3025UF-PB-A-D2.5-L20
SIZEØ3 / 0.118″Point-Type Brush
+
DiameterØ3 / 0.118″
Weight3 g
Maximum RPM12000
GritSKUDescription
#150UF3130UF-PB-G-D3-L20
#200UF3230UF-PB-P-D03-L20
#400UF3330UF-PB-V-D3-L20
#600UF3430UF-PB-O-D3-L20
#800UF3530UF-PB-B-D3-L20
#1000UF3630UF-PB-W-D3-L20
#1200UF3730UF-PB-R-D3-L20
#2000UF3830UF-PB-M-D3-L20
#3000UF3930UF-PB-Z-D3-L20
#6000UF3030UF-PB-A-D3-L20
PORTABLE DRIVE SYSTEM

UF9999 Portable E-Pack

End-Type Brushes and Point-Type Brushes are compatible with the UF9999 Portable E-Pack for portable precision deburring, finishing and polishing applications.

VIEW UF9999 E-PACK →
WHY UFIBER®

Ceramic Fiber Technology Designed for Controlled Finishing

UFIBER ceramic fibers provide controlled abrasive contact for deburring, polishing and finishing while supporting repeatable use in automated and manual processes.

3-in-1 Process CapabilityDeburring, polishing and finishing.
Controlled Bristle BehaviorPredictable contact during rotation.
Stable Grinding PerformanceSupports repeatable processing.
Automation ReadyCNC, machining centers and robotic systems.
UFIBER nano technology comparisonUFIBER controlled bristle behavior

More UFIBER® Tools

Radial Ceramic Fiber Discs0.8 mm discs for grooves, slots, ribs and side walls · #150–#1000.VIEW DISCS →Ceramic Diamond StonesDiamond finishing for carbide, hardened steel, ceramics and EDM scale.VIEW STONES →Portable E-PackPortable drive for End & Point Brushes, discs and stones.VIEW E-PACK →UFIBER OverviewCompare all three UFIBER tool lines.ALL UFIBER TOOLS →

See UFIBER in Action

Click a video to watch it on YouTube.

Frequently Asked Questions

Which UFIBER® brush types are available?
The range includes Surface, Cross-Hole, End-Type and Point-Type ceramic fiber brushes, from Ø1 to Ø100 mm. Each geometry is designed for a different access area and finishing task.
How do I choose the correct brush type?
Start with the geometry you need to reach: broad surfaces and edges (Surface), internal bores and intersecting holes (Cross-Hole), flat ends, corners and recesses (End-Type), or small precision areas (Point-Type). The brush cards above link directly to the matching sizes.
Which grit sizes are available, and where do I start?
UFIBER brushes are available in ten grits from #150 to #6000. Use coarser grits for heavier burrs and finer grits for finishing and polishing; choose the starting grit by burr condition, material and required finish, then optimize on the actual component.
Can UFIBER brushes be used on CNC machines and robots?
Yes. UFIBER brushes are suitable for CNC machines, machining centers, lathes with driven tools, dedicated machines and robotic systems. End-Type and Point-Type brushes can also be used hand-held.
What mounting options are available for Surface Brushes?
Surface Brushes mount on the dedicated UFIBER sleeves and shanks listed in the Surface Brush range. Floating Dampers add controlled axial compliance for CNC and robotic finishing.
Which brushes work with the UF9999 Portable E-Pack?
End-Type and Point-Type Brushes are compatible with the UF9999 Portable E-Pack for portable deburring, finishing and polishing.
Where can I find machining recommendations?
Each brush type links to its technical guidelines, and the UFIBER Technical Center collects them in one place. The UFIBER AI Assistant gives an application-based starting point.
Where can I find application examples and technical material?
Application examples are in the NOGA case studies and product literature in the NOGA MT catalog section. The videos on this page show UFIBER brushes in operation.

Need Help Selecting the Right Brush?

Send us your part drawing, material, burr condition and machine details. Our team will suggest a brush geometry, starting grit and process direction — or get an instant starting point from the UFIBER AI Assistant.

REQUEST APPLICATION SUPPORTOPEN UFIBER AI ASSISTANT
Accessibility by WAH
