UBURR · CNC Application Case Study

Front & Rear Deburring of 17-4 PH Arthroscopy Drills.

Remove front and rear burrs from arthroscopy scissor joint bores automatically. Two UBURR™ tool-holder sets deburred Ø2.5 and Ø3.0 mm pilot holes in 17-4 PH stainless steel at 2,000 RPM, leaving 0.2×45° chamfers and saving the customer roughly 20 hours of manual work per month.

Medical17-4 PH stainless7,000 bores/month

See the result

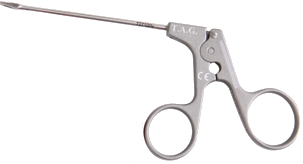

Stainless steel arthroscopy scissors, the reusable instrument whose joint bores were deburred with NOGA UBURR — Arthroscopy scissors: the finished instrument.

Pilot holes: Ø2.5 / 3.0 mm
Spindle speed: 2,000 RPM
Chamfer: 0.2×45°
Manual work saved: ~20 h/month

01 / The application

Precision bores in a reusable instrument.

The task

Remove burrs from the front and rear of machined drill holes for arthroscopy scissors.

The arthroscopy scissor joint is a reusable system that combines quality, durability and precise tactility in each instrument, providing an optimal solution for every angle.

Application details

Industry: Medical
Material: 17-4 PH (W.Nr. 1.4542)
Pilot holes: Ø2.5 & Ø3.0 mm (0.098" & 0.118")
Pilot hole lengths: H1 = 20 mm, H2 = 6 mm (0.787" & 0.236")
Machine: DMG Mori CMX 50 U
Production volume: 7,000 bores/month

02 / Tools & parameters

The tools behind
the result.

UBURR tool-holder set · Ø2.5 mm

UB2500

UBS-d025-C08-H29-L65

Blade: UB2022
Blade code: UB-TSB-2.5-PL-NCT

UBURR tool-holder set · Ø3.0 mm

UB3000

UBS-d030-C08-H29-L85

Blade: UB2032
Blade code: UBS-TSB-3.0-PL-NCT

Explore UBURR deburring tools

Recorded machining parameters
Parameter	Ø2.5 mm	Ø3.0 mm
Workpiece material	17-4 PH	17-4 PH
Pilot hole diameter	Ø2.5 mm (0.098")	Ø3.0 mm (0.118")
Spindle speed	2,000 RPM	2,000 RPM
Table feed	500 mm/min (20 in/min)	500 mm/min (20 in/min)
Cutting speed	16 m/min (52 sfm)	19 m/min (62 sfm)
Feed per tooth	0.25 mm (0.01")	0.25 mm (0.01")
Coolant	External emulsion	External emulsion

These values describe this application. Confirm the setup for your own parts with NOGA MT.

03 / Results

Burrs eliminated, about 20 hours saved.

Burrs eliminated · 0.2×45° chamfers

0.2×45°Chamfer on front and rear edges

~20 hManual work saved per month

7,000Bores per month, automated

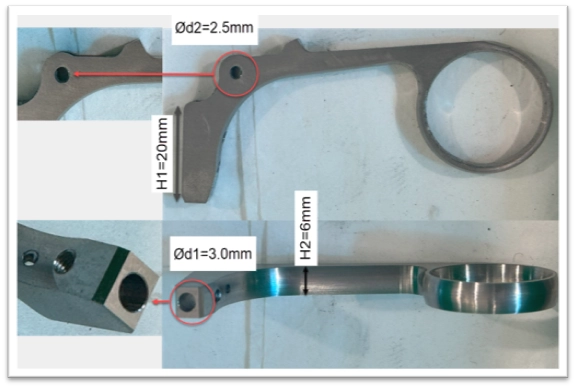

17-4 PH arthroscopy drill bore after UBURR deburring — Result photo supplied from the application.
