UBURR · CNC Application Case Study

Rear-Hole Deburring of 17-4 PH Medical Drills.

Automate rear-hole deburring on Swiss-type production. On a Star SR-20 JII, a UBURR™ UB2500 tool-holder with a UB2022 blade deburred the back of Ø2.73 mm pilot holes in 17-4 PH stainless steel in 5 seconds instead of 1 minute by hand, leaving 0.17×45° chamfers. Spend $79 a month on tooling, save $3,250 a month.

Medical17-4 PH stainless3,000 parts/month

See the savings

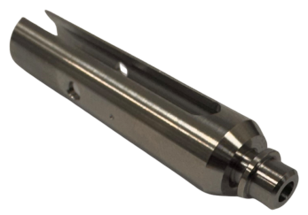

UBURR rear-hole deburring of a 17-4 PH medical drill — Application from the reported case.

Cycle time: 1 min → 5 s
Time reduction: ~92 %
Monthly savings: $3,250
Tool cost: $79 /month

01 / The application

One minute of handwork, every part.

The task

Deburr the rear section of machined drill holes in a medical component, replacing a manual operation that took 1 minute per part.

Application details

Industry: Medical
Material: 17-4 PH (W.Nr. 1.4542)
Pilot hole: Ø2.73 mm (0.1075")
Pilot hole length: H1 = 12 mm (0.472")
Machine: Star SR-20 JII Type B
Production volume: 3,000 parts/month

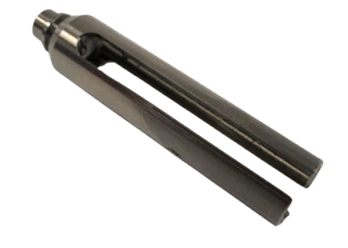

UBURR tool deburring the rear of a medical drill hole — Application view from the reported case.

02 / Tool & parameters

The tool behind
the result.

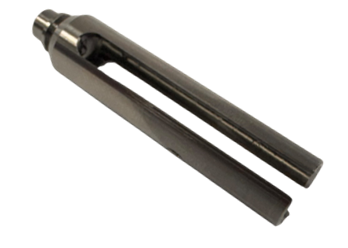

UBURR tool-holder

UB2500

UBS-d025-C08-H29-L65

Pilot hole: Ø2.73 mm
Blade: UB2022

UBURR blade

UB2022

UB-TSB-2.5-PL-NCT

Explore UBURR deburring tools

Recorded machining parameters
Workpiece material	17-4 PH (W.Nr. 1.4542)
Pilot hole diameter	Ø2.73 mm (0.1075")
Pilot hole length	12 mm (0.472")
Machine	Star SR-20 JII Type B
Spindle speed	4,500 RPM
Table feed	100 mm/min (3.9 in/min)
Cutting speed	40 m/min (131 sfm)
Feed per tooth	0.025 mm (0.001")
Coolant	Oil
Reported result	Burrs eliminated, 0.17×45° chamfers

These values describe this application. Confirm the setup for your own parts with NOGA MT.

Watch UBURR on a medical part

VIDEO · SHORT

UBURR demo on a medical part: precision rear-hole deburring by NOGA MT.

03 / Results & ROI

Spend $79. Save $3,250 every month.

Burrs eliminated · 0.17×45° chamfers

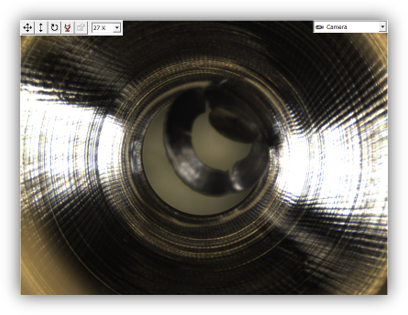

Rear of 17-4 PH drill hole before UBURR deburring, with burr — Rear of the drill hole with burr.

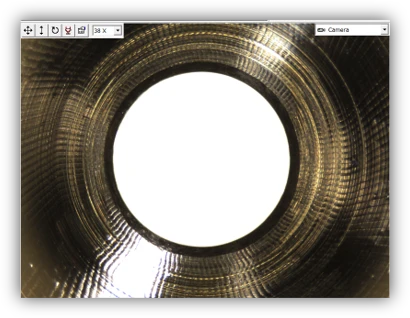

Rear of 17-4 PH drill hole after UBURR deburring with 0.17×45° chamfer — Burr removed, leaving a 0.17×45° chamfer.

5 sUBURR cycle, vs. 1 minute manual

~92%Cycle time reduction

46 hSaved per month

≈41×Monthly savings vs. $79 tool cost

Customer savings per month
Labor (46 hours saved)	$1,500
Tooling cost reduction	$1,750
Total monthly savings	$3,250

Return on investment
UBURR tool cost	$79 / month
Net monthly gain	$3,171
ROI	≈4,000% per month
Payback	Less than one working day
