UFIBER® Ceramic Diamond Stones Point-Type Finishing for Ultra-Hard Materials
Diamond abrasive point tools with a ceramic-fiber structure for controlled grinding, EDM scale removal, precision finishing, polishing and lapping of tungsten carbide, hardened steels, ceramics, glass and other demanding materials.
- Diamond Abrasive
- Ultra-Hard Materials
- Custom Dressing
- CNC Compatible
- Point-Type Geometry
FINISHING
Product Overview
Precision Finishing for Ultra-Hard Materials
Achieve controlled cutting, long tool life and consistent surface quality on demanding materials with UFIBER Ceramic Diamond Stones by NOGA MT.
Controlled Cutting. Superior Finish.
UFIBER Ceramic Diamond Stones combine diamond abrasives with a nano-engineered ceramic fiber structure. The result is a point-type finishing tool designed for ultra-hard materials, EDM scale removal, fine finishing, precision polishing and lapping.
The stones are suitable for controlled high-speed use with pneumatic tools and can be dressed to custom shapes for demanding precision applications.
Main Applications
- Tungsten carbide
- Hardened steels
- Ceramics
- Glass
- EDM-processed surfaces
- Precision components
Key Features
Works beyond edges and tips for more flexible contact and finishing control.
Continuously exposes fresh abrasives to help maintain stable performance.
Helps prevent loading and supports consistent finishing quality.
Designed as a stronger alternative compared with resin-bond tools.
Effective on all contact directions for complex finishing tasks.
Can be dressed to custom shapes according to application requirements.
Grit & Color Identification Guide
Select the right grit according to the required operation, from heavy removal to precision polishing and lapping.
Diamond Stone Point-Type Product Range
Available in diameters from 1.0 mm to 3.0 mm, with maximum speed up to 60,000 RPM.

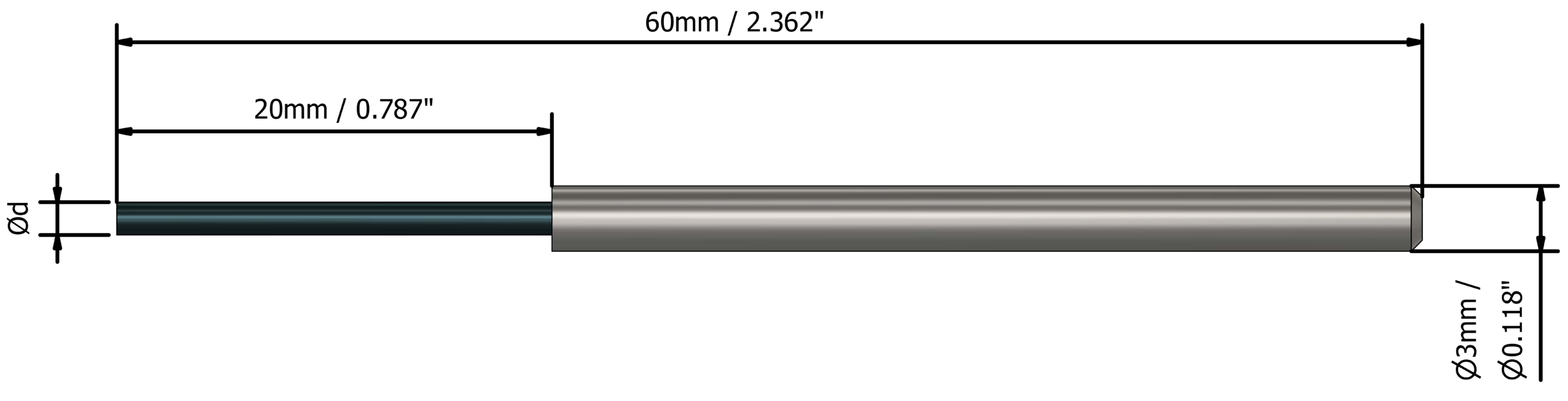

Dimensions for Ø1.0–2.0 mm (0.039–0.079") Diamond Stones

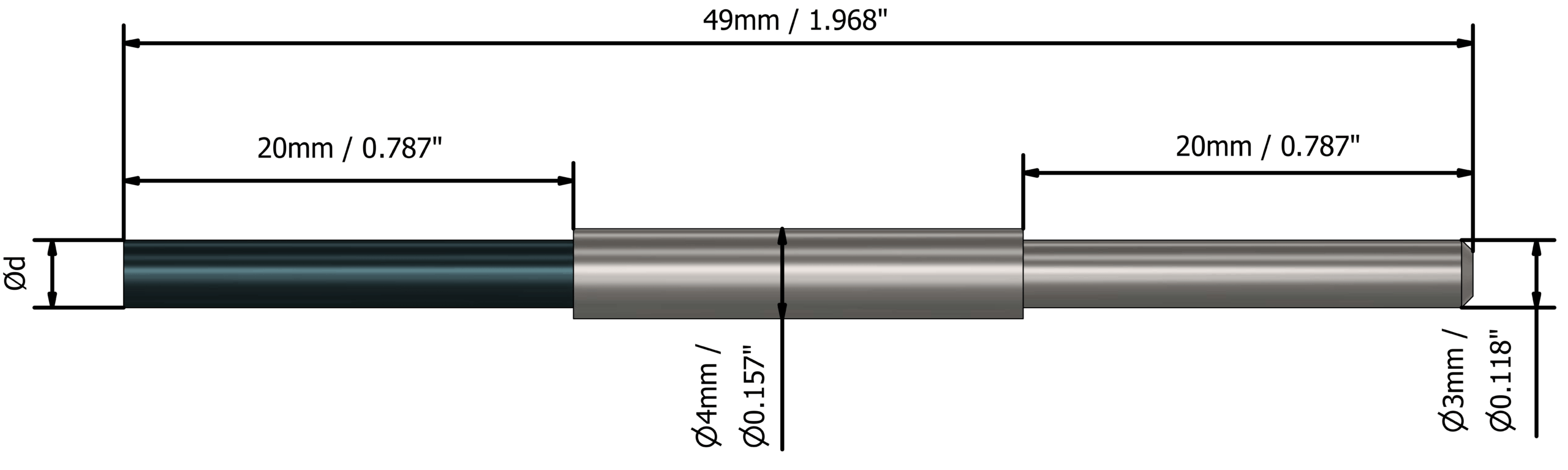

Dimensions for Ø2.5–3.0 mm (0.098–0.118") Diamond Stones
Ø1.0mm /0.039"
| SKU | Description | Grit | Stone Colour |
|---|---|---|---|
| UF9110 | UF-DS-B-D1-L20 | #200 | Black |
| UF9210 | UF-DS-S-D1-L20 | #400 | Silver |
| UF9310 | UF-DS-F-D1-L20 | #600 | Forest green |
| UF9410 | UF-DS-G-D1-L20 | #800 | Green |
Ø1.5mm /0.059"
| SKU | Description | Grit | Stone Colour |
|---|---|---|---|
| UF9115 | UF-DS-B-D1.5-L20 | #200 | Black |
| UF9215 | UF-DS-S-D1.5-L20 | #400 | Silver |
| UF9315 | UF-DS-F-D1.5-L20 | #600 | Forest green |
| UF9415 | UF-DS-G-D1.5-L20 | #800 | Green |
Ø2.0mm /0.079"
| SKU | Description | Grit | Stone Colour |
|---|---|---|---|
| UF9120 | UF-DS-B-D2-L20 | #200 | Black |
| UF9220 | UF-DS-S-D2-L20 | #400 | Silver |
| UF9321 | UF-DS-F-D2-L20 | #600 | Forest green |
| UF9421 | UF-DS-G-D2-L20 | #800 | Green |
Ø2.5mm /0.098"
| SKU | Description | Grit | Stone Colour |
|---|---|---|---|
| UF9125 | UF-DS-B-D2.5-L20 | #200 | Black |
| UF9225 | UF-DS-S-D2.5-L20 | #400 | Silver |
| UF9325 | UF-DS-F-D2.5-L20 | #600 | Forest green |
| UF9425 | UF-DS-G-D2.5-L20 | #800 | Green |
Ø3.0mm /0.118"
| SKU | Description | Grit | Stone Colour |
|---|---|---|---|
| UF9130 | UF-DS-B-D3-L20 | #200 | Black |
| UF9230 | UF-DS-S-D3-L20 | #400 | Silver |
| UF9330 | UF-DS-F-D3-L20 | #600 | Forest green |
| UF9430 | UF-DS-G-D3-L20 | #800 | Green |
Starting Conditions for CNC & Precision Finishing
Use light contact pressure and confirm stable, runout-free rotation before machining.
Maximum permissible spindle speed.
Due to the high grinding performance, speeds up to 30,000 RPM are sufficient for most applications.
Apply light contact pressure during finishing.
Keep the applied force below 5 N during use.
Suitable for CNC machines when operated within the specified conditions.
Recommended Setup Procedure
Perform a test run before contacting the workpiece. Stop if runout, vibration or any abnormality is observed.
Target approximately 1 N. Do not exceed 5 N during use.
No fixed feed or DOC is prescribed. Adjust feed, contact and process time based on the actual material and required finish.
