Mark-Free CNC Deburring of Small Stainless Steel 420 Parts.
Replace buffing wheels and manual handling with an automated CNC finish. On a 15 mm stainless steel 420 component, a UFIBER™ Ø5 mm end brush and a Ø1 mm point brush produced a mark-free surface with no buffing or polishing marks, at 10,000 RPM and 200 mm/min, dry. The process was approved for future production.
See the trial result
UF4450 · UF3410 · #600- End brush
- UF4450
- Point brush
- UF3410
- Spindle speed
- 10,000 RPM
- Table feed
- 200 mm/min
01 / The application
Line marks from buffing wheels.
The task

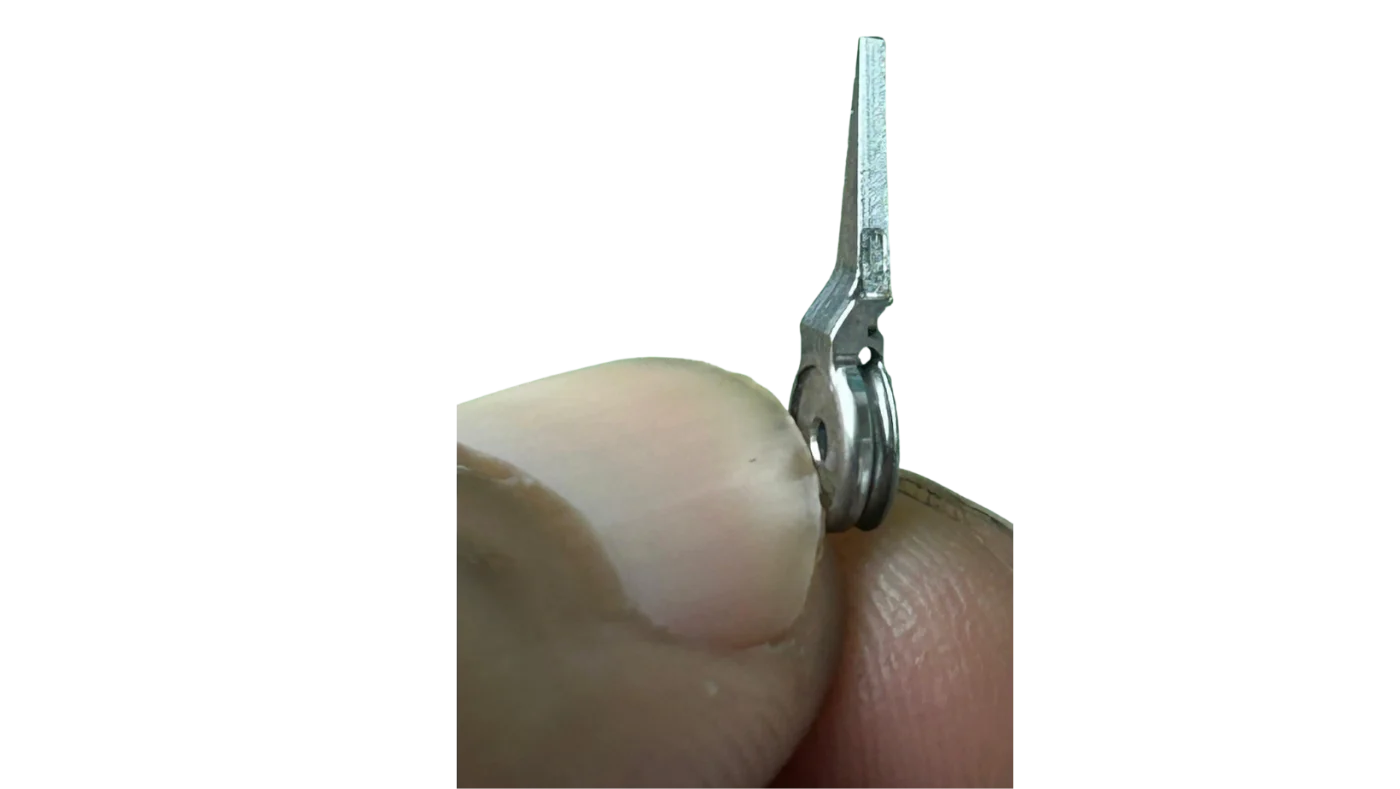

Achieve mark-free CNC deburring and high-quality surface finishing on a small stainless steel 420 component, eliminating the line marks left by traditional buffing wheels.
The customer also wanted to replace manual deburring of small parts with a repeatable, automated CNC process suitable for future production volumes.
Application details
- Industry
- Precision CNC machining
- Part
- Precision component
- Material
- ASTM A276 / W.Nr. 1.4021 / X20Cr13
- Machine
- Willemin-Macodel (9-axis)
- Part length
- 15 mm
- Part thickness
- 1.5 mm
02 / Tools & parametersThe tools behind
The tools behind
the result.
UFIBER end brush · primary finishing
UF4450
UF-EB-O-D5-L20
- Brush diameter
- Ø5 mm
- Grit
- #600 Orange

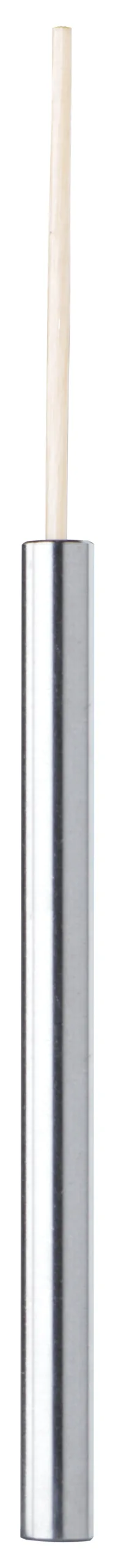

UFIBER point brush · fine features
UF3410
UF-PB-O-D1-L20
- Brush diameter
- Ø1 mm
- Grit
- #600 Orange
| Workpiece material | Stainless steel 420 (1.4021 / X20Cr13) |
|---|---|
| Machine | Willemin-Macodel, 9-axis |
| Depth of cut (DOC) | 0.05 mm (0.002") |
| Spindle speed | 10,000 RPM |
| Table feed | 200 mm/min (8 in/min) |
| Coolant | Dry |
| UF4450 role | Primary surface finishing |
| UF3410 role | Fine features and small surfaces |
These values describe this application. Confirm the setup for your own parts with NOGA MT.
03 / Before & after
Approved for future productionMark-free, and ready to scale.

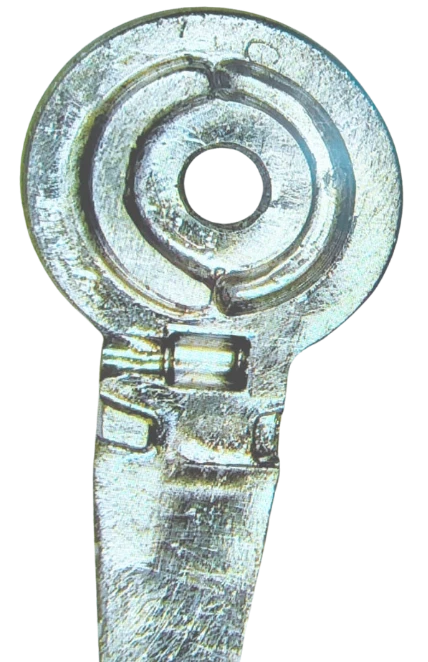

Before UFIBER
STAINLESS 420

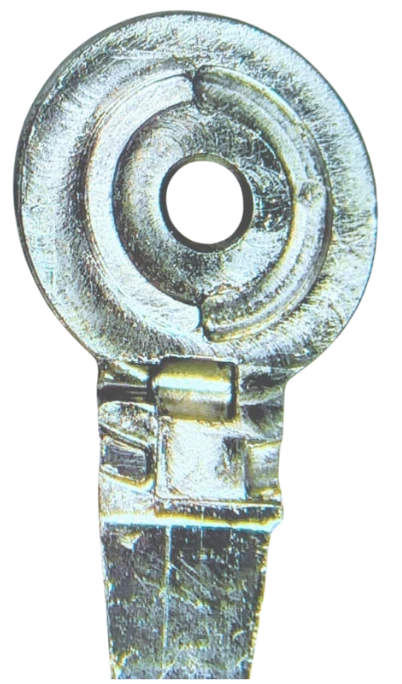

After UFIBER
MARK-FREE
- Mark-free surface finish on stainless steel
- No buffing wheel or polishing marks
- Fully automated CNC deburring process
- Improved consistency and repeatability
- No manual handling of small parts
- Approved for future production scaling
