PH6800

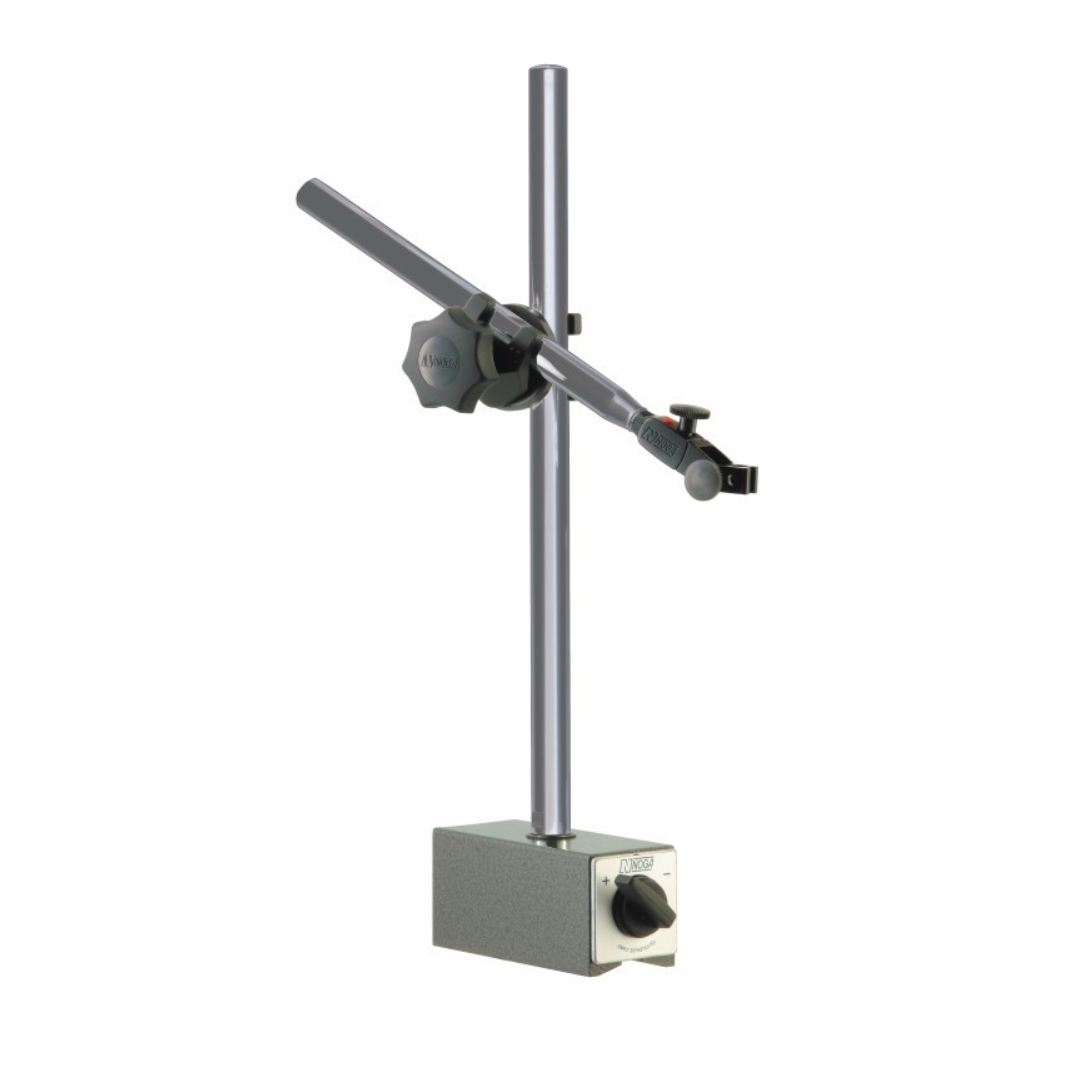

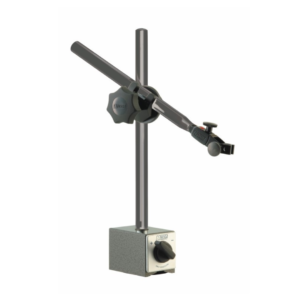

PH Holder super large – PH6800

The NOGA PH Holder super large (PH6800) is an indicator holder for positioning dial and test indicators during measurement and inspection.

New Fine adjustment on the top with universal swivel clamp.

– Powerful on/off magnetic base.
– Strong arm lock by using the unique 3-point system.
– Easy to set up into required position.

  • Clamp Holds: 6mm, 8mm,3/8″and dovetail
  • Bottom thread: M10 x 1.25
  • Weight: 3.45 Kg
  • Post Length and diameter: Ø18 x 350mm
  • Arm length and diamter: Ø16 x 225mm
  • Magnet Force: 1300 N
  • Magnet Width: 50mm
  • Magnet Length: 120mm
  • Magnet Height: 55mm

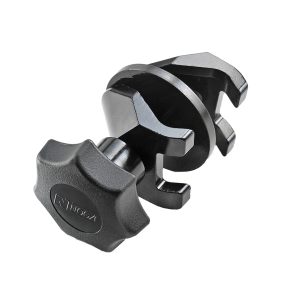

  • order no. for 3 points clamp: PH0313

Technical Specifications

The NOGA PH Holder super large (PH6800) is an indicator holder for positioning dial and test indicators during measurement and inspection.

New Fine adjustment on the top with universal swivel clamp.

– Powerful on/off magnetic base.
– Strong arm lock by using the unique 3-point system.
– Easy to set up into required position.

  • Clamp Holds: 6mm, 8mm,3/8″and dovetail
  • Bottom thread: M10 x 1.25
  • Weight: 3.45 Kg
  • Post Length and diameter: Ø18 x 350mm
  • Arm length and diamter: Ø16 x 225mm
  • Magnet Force: 1300 N
  • Magnet Width: 50mm
  • Magnet Length: 120mm
  • Magnet Height: 55mm
  • order no. for 3 points clamp: PH0313
