Automated CNC Deburring of Small Stainless Steel Components UFIBER Ceramic Brush Case Study – SS 420

Industry: Precision CNC machining, automated deburring, and surface finishing for stainless steel components.

Objective:

To achieve mark-free CNC deburring and high-quality surface finishing on a small stainless steel 420 component, eliminating line marks caused by traditional buffing wheels.

The customer also aimed to replace manual deburring of small parts with a repeatable, automated CNC process suitable for future production volumes.

Application details:

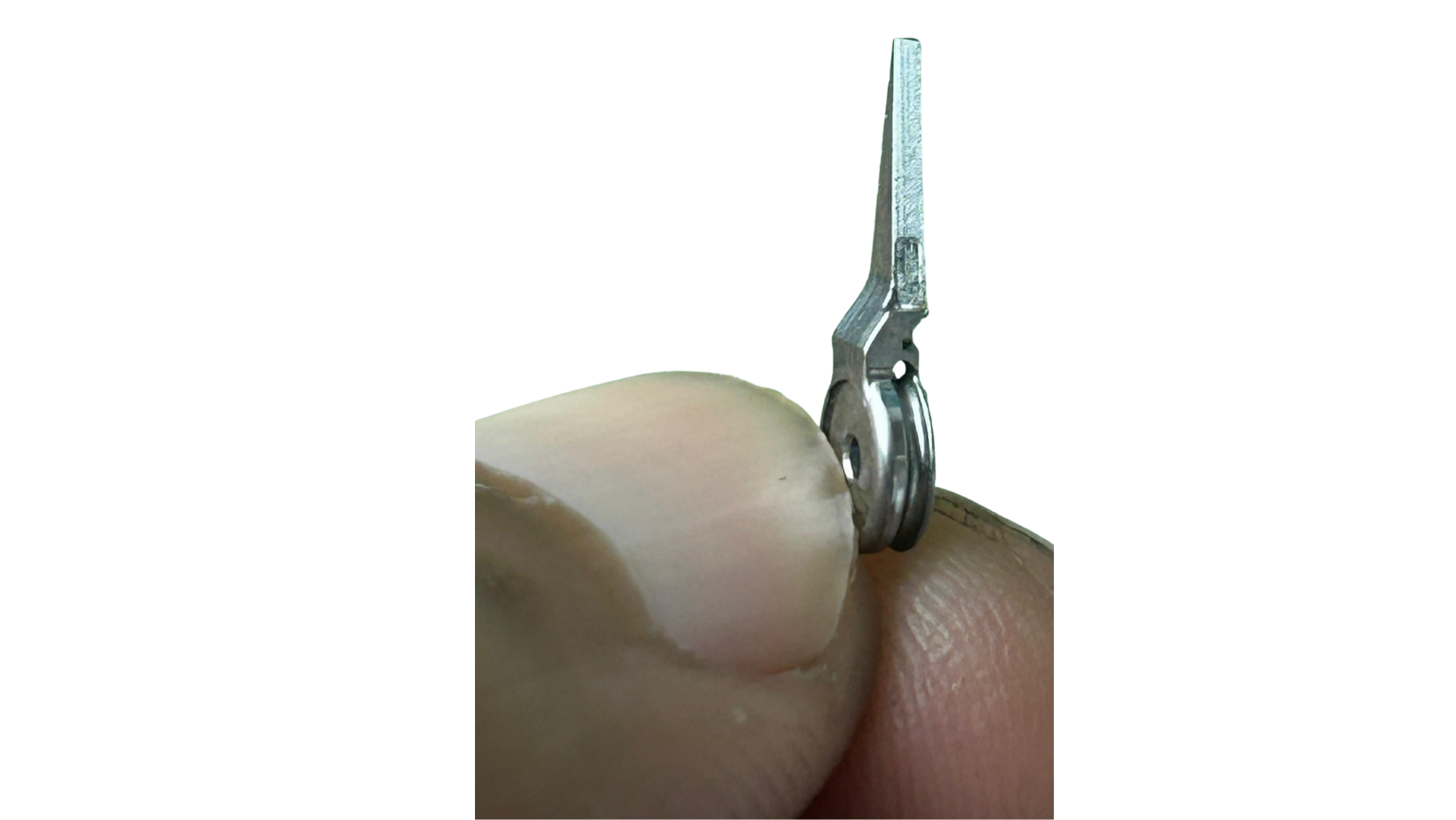

  • Part: Precision component
  • Material: ASTM A276/Wr N. 1.4021/X20Cr13
  • CNC Machine: Willemin-Macodel (9-Axis)
  • Part Length: 15 mm
  • Part Thickness: 1.5 mm

Brush:

  • UF4450/UF-EB-O-D5-L20, Ø5 mm UFIBER End Brush with Orange grit #600–primary surface finishing

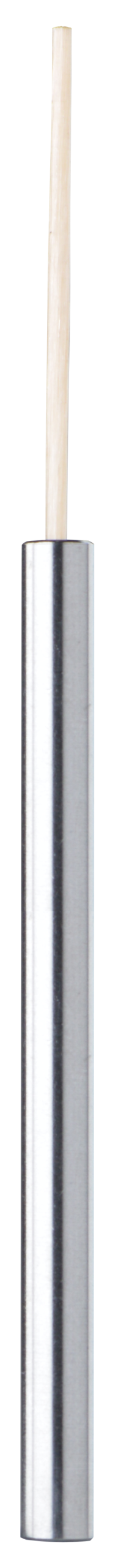

  • UF3410/UF-PB-O-D1-L20, Ø1 mm UFIBER Point Brush with Orange grit #600–finishing of fine features and small surfaces

Machining Parameters:



DOC
Depth Of Cut

S
Spindle Speed

F
Table Feed

Coolant

mm

Inch

RPM

mm/min

inch/min

0.05

0.002

10000

200

8

Dry

UF3410

Results

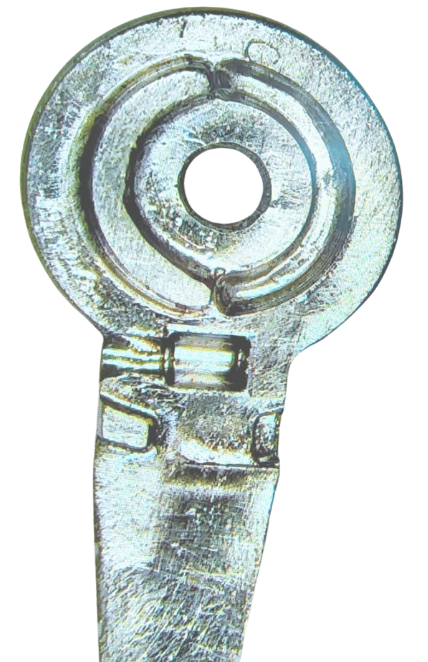

Before:

Before part

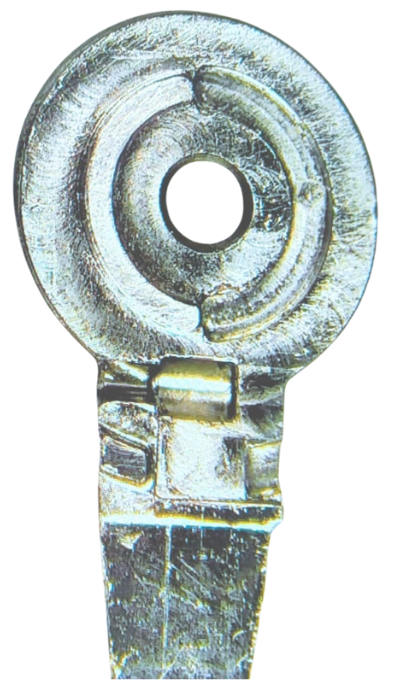

After:

after part

✅ Mark-free surface finish on stainless steel

✅ No buffing wheel or polishing marks

✅ Fully automated CNC deburring process

✅ Improved consistency and repeatability

✅ No manual handling of small parts

✅ Approved for future production scaling
